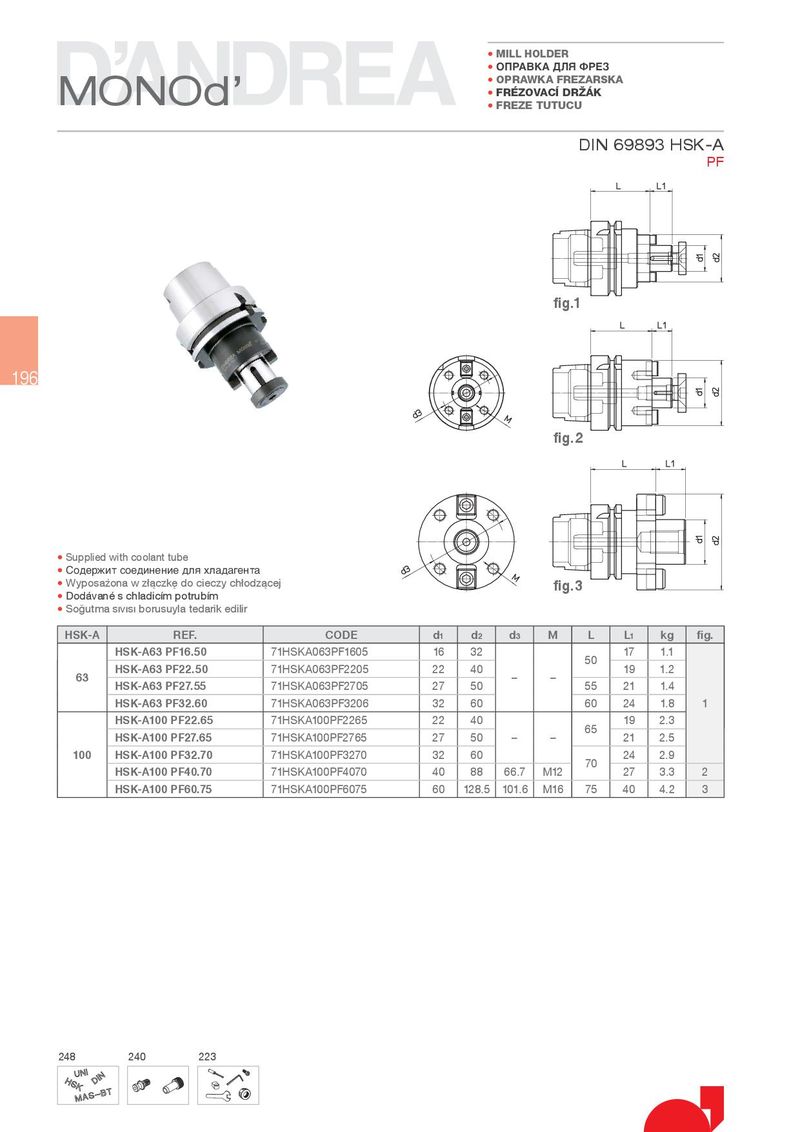

- FREZE TUTUCU
DIN 69893 HSK-A
PF
fig.1
196
fig.2
- Supplied with coolant tube
- Содержит соединение для хладагента
- :\SRVDƅRQDZ]ŕĝF]NĸGRFLHF]\FKŕRG]ĝFHM fig.3
- 'RG¾YDQÆVFKODGLFÊPSRWUXEÊP
- 6RĽXWPDVIJYIJVIJERUXVX\ODWHGDULNHGLOLU
| HSK-A | REF. | CODE | d1 | d2 | d3 | M | L | L1 | kg | fig. |
| HSK-A63 PF16.50 | 71HSKA063PF1605 | 16 | 32 | 50 | 17 | 1.1 | ||||
| 63 | HSK-A63 PF22.50 | 71HSKA063PF2205 | 22 | 40 | 19 | 1.2 | ||||
| HSK-A63 PF27.55 | 71HSKA063PF2705 | 27 | 50 | � | � | 55 | 21 | 1.4 | ||
| HSK-A63 PF32.60 | 71HSKA063PF3206 | 32 | 60 | 60 | 24 | 1.8 | 1 | |||
| HSK-A100 PF22.65 | 71HSKA100PF2265 | 22 | 40 | 65 | 19 | 2.3 | ||||
| HSK-A100 PF27.65 | 71HSKA100PF2765 | 27 | 50 | � | � | 21 | 2.5 | |||
| 100 | HSK-A100 PF32.70 | 71HSKA100PF3270 | 32 | 60 | 70 | 24 | 2.9 | |||
| HSK-A100 PF40.70 | 71HSKA100PF4070 | 40 | 88 | 66.7 | M12 | 27 | 3.3 | 2 | ||
| HSK-A100 PF60.75 | 71HSKA100PF6075 | 60 | 128.5 | 101.6 | M16 | 75 | 40 | 4.2 | 3 |
