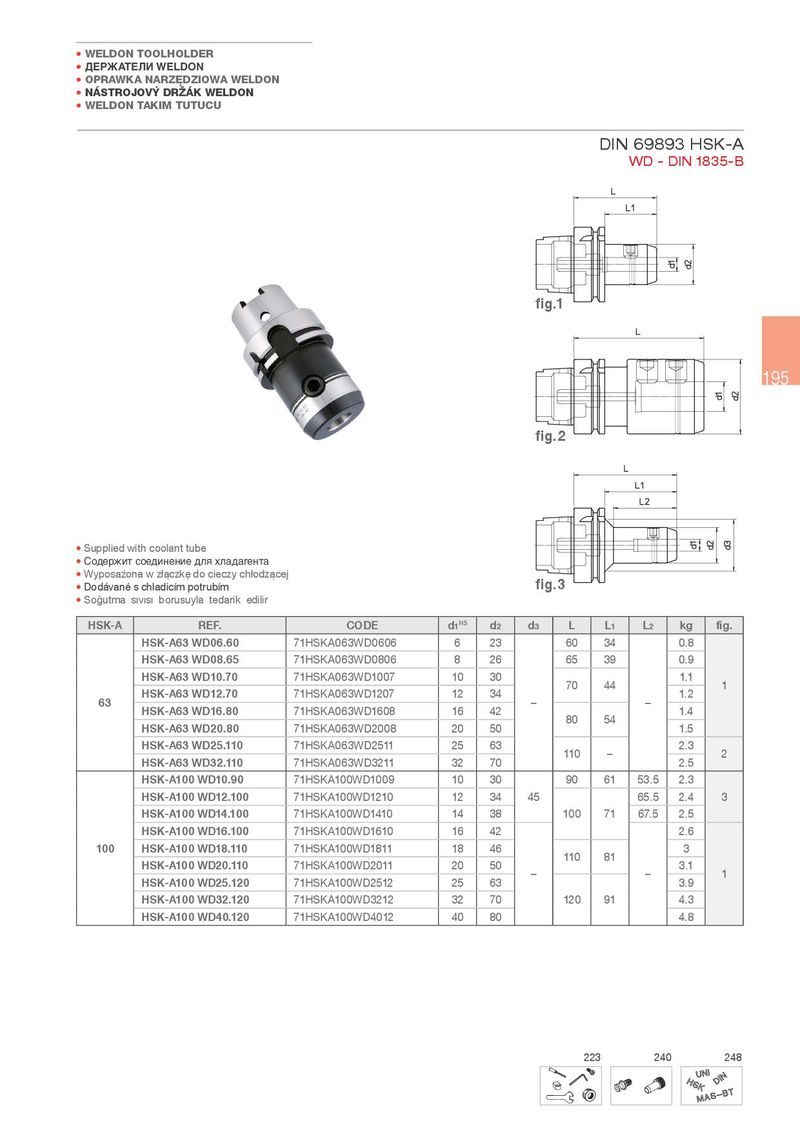

WELDON TAKIM TUTUCU

DIN 69893 HSK-A

WD - DIN 1835-B

fig.1

195

fig.2

Supplied with coolant tube
Содержит соединение для хладагента

•:\SRVDƅRQDZ]ŕĝF]NĸGRFLHF]\FKŕRG]ĝFHM fig.3 •'RG¾YDQÆVFKODGLFÊPSRWUXEÊP •6RĽXWPDVĲYĲVĲERUXVX\ODWHGDULNHGLOLU

HSK-A	REF.	CODE	d1H5	d2	d3	L	L1	L2	kg	fig.
	HSK-A63 WD06.60	71HSKA063WD0606	6	23		60	34		0.8
	HSK-A63 WD08.65	71HSKA063WD0806	8	26		65	39		0.9
	HSK-A63 WD10.70	71HSKA063WD1007	10	30		70	44		1.1	1
63	HSK-A63 WD12.70	71HSKA063WD1207	12	34	�			�	1.2
	HSK-A63 WD16.80	71HSKA063WD1608	16	42		80	54		1.4
	HSK-A63 WD20.80	71HSKA063WD2008	20	50					1.5
	HSK-A63 WD25.110	71HSKA063WD2511	25	63		110			2.3	2
	HSK-A63 WD32.110	71HSKA063WD3211	32	70			�		2.5
	HSK-A100 WD10.90	71HSKA100WD1009	10	30		90	61	53.5	2.3
	HSK-A100 WD12.100	71HSKA100WD1210	12	34	45			65.5	2.4	3
	HSK-A100 WD14.100	71HSKA100WD1410	14	38		100	71	67.5	2.5
	HSK-A100 WD16.100	71HSKA100WD1610	16	42					2.6
100	HSK-A100 WD18.110	71HSKA100WD1811	18	46		110	81		3
	HSK-A100 WD20.110	71HSKA100WD2011	20	50					3.1	1
	HSK-A100 WD25.120	71HSKA100WD2512	25	63	�			�	3.9
	HSK-A100 WD32.120	71HSKA100WD3212	32	70		120	91		4.3
	HSK-A100 WD40.120	71HSKA100WD4012	40	80					4.8
