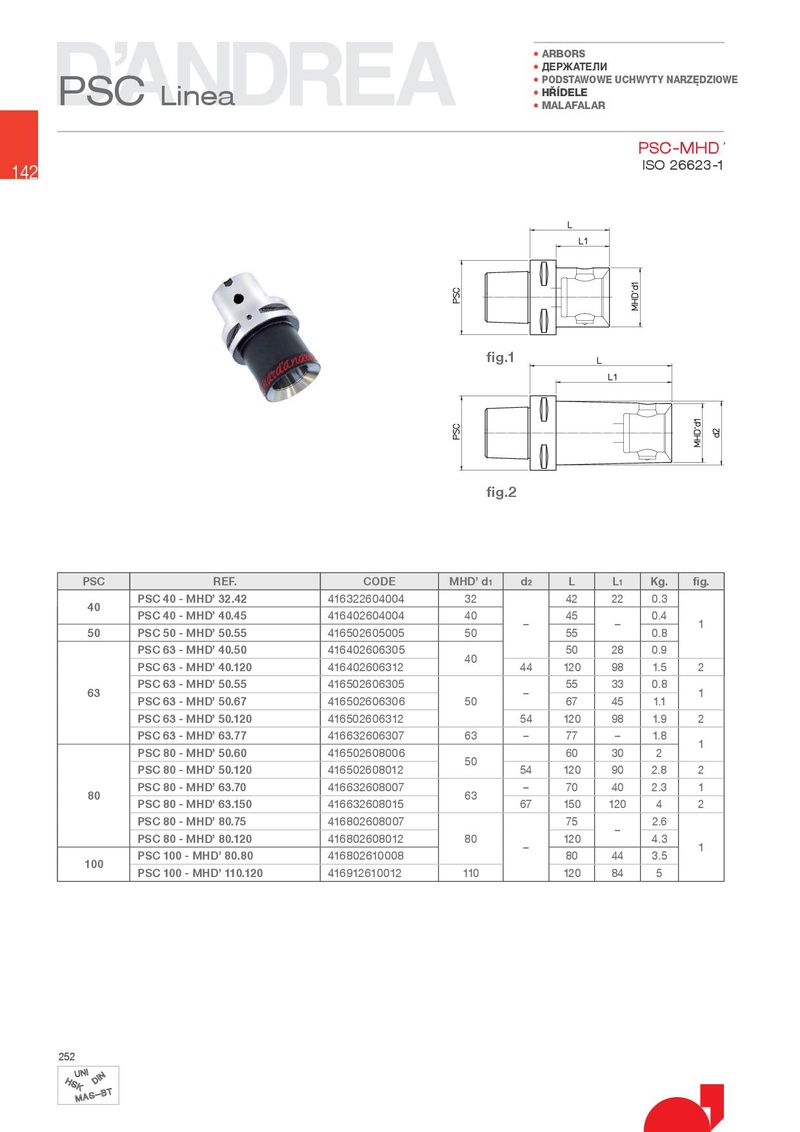

PSC Linea PODSTAWOWE UCHWYTY NARZ}DZIOWE

MALAFALAR

PSC-MHD’

142 ISO 26623-1

fig.1

fig.2

PSC	REF.	CODE	MHD’ d1	d2	L	L1	Kg.	fig.
40	PSC 40 - MHD’ 32.42	416322604004	32		42	22	0.3
	PSC 40 - MHD’ 40.45	416402604004	40	–	45	–	0.4	1
50	PSC 50 - MHD’ 50.55	416502605005	50		55		0.8
	PSC 63 - MHD’ 40.50	416402606305			50	28	0.9
	PSC 63 - MHD’ 40.120	416402606312	40	44	120	98	1.5	2
63	PSC 63 - MHD’ 50.55	416502606305		–	55	33	0.8	1
	PSC 63 - MHD’ 50.67	416502606306	50		67	45	1.1
	PSC 63 - MHD’ 50.120	416502606312		54	120	98	1.9	2
	PSC 63 - MHD’ 63.77	416632606307	63	–	77	–	1.8	1
	PSC 80 - MHD’ 50.60	416502608006	50		60	30	2
	PSC 80 - MHD’ 50.120	416502608012		54	120	90	2.8	2
	PSC 80 - MHD’ 63.70	416632608007		–	70	40	2.3	1
80	PSC 80 - MHD’ 63.150	416632608015	63	67	150	120	4	2
	PSC 80 - MHD’ 80.75	416802608007			75		2.6
	PSC 80 - MHD’ 80.120	416802608012	80		120	–	4.3	1
100	PSC 100 - MHD’ 80.80	416802610008		–	80	44	3.5
	PSC 100 - MHD’ 110.120	416912610012	110		120	84	5
