- PODSTAWOWE UCHWYTY NARZ}DZIOWE
- MALAFALAR

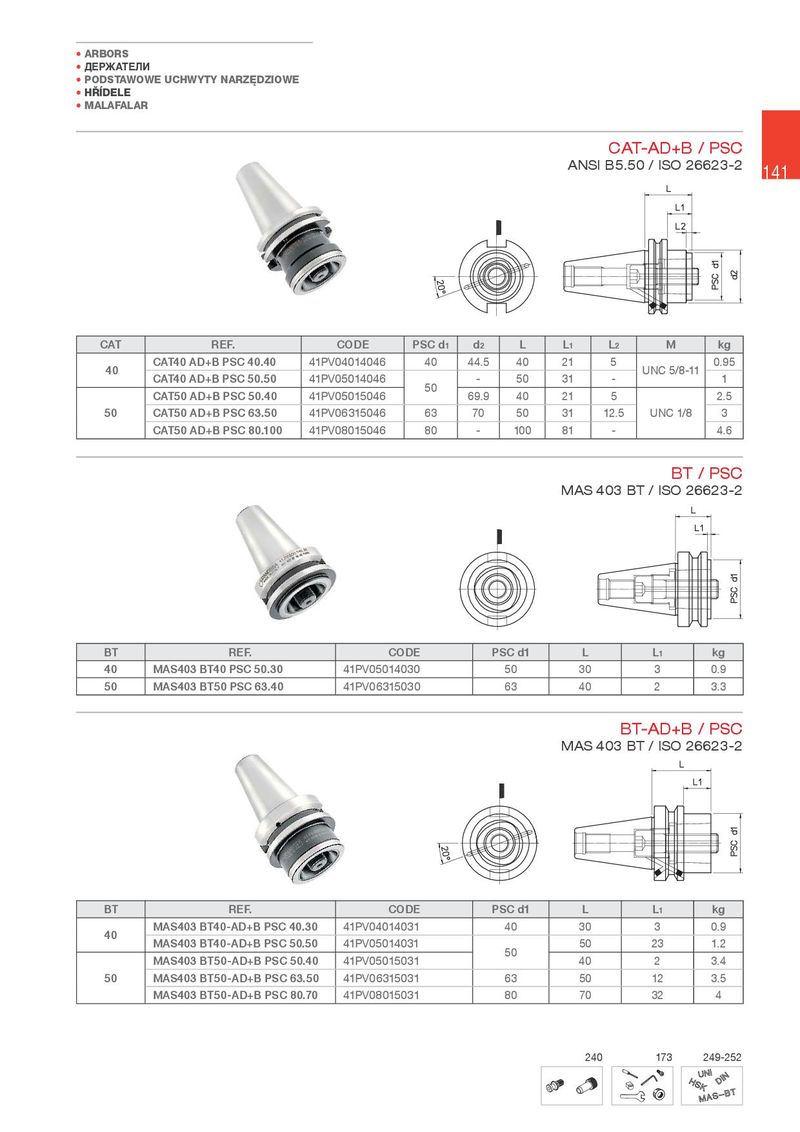

CAT-AD+B / PSC
ANSI B5.50 / ISO 26623-2 141
| CAT | REF. | CODE | PSC d1 | d2 | L | L1 | L2 | M | kg |
| 40 | CAT40 AD+B PSC 40.40 | 41PV04014046 | 40 | 44.5 | 40 | 21 | 5 | UNC 5/811 | 0.95 |
| CAT40 AD+B PSC 50.50 | 41PV05014046 | 50 | - | 50 | 31 | - | - | 1 | |
| CAT50 AD+B PSC 50.40 | 41PV05015046 | 69.9 | 40 | 21 | 5 | 2.5 | |||
| 50 | CAT50 AD+B PSC 63.50 | 41PV06315046 | 63 | 70 | 50 | 31 | 12.5 | UNC 1/8 | 3 |
| CAT50 AD+B PSC 80.100 | 41PV08015046 | 80 | - | 100 | 81 | - | 4.6 |
BT / PSC
MAS 403 BT / ISO 26623-2
| BT | REF. | CODE | PSC d1 | L | L1 | kg |
| 40 | MAS403 BT40 PSC 50.30 | 41PV05014030 | 50 | 30 | 3 | 0.9 |
| 50 | MAS403 BT50 PSC 63.40 | 41PV06315030 | 63 | 40 | 2 | 3.3 |
BT-AD+B / PSC
MAS 403 BT / ISO 26623-2
| BT | REF. | CODE | PSC d1 | L | L1 | kg |
| 40 | MAS403 BT40-AD+B PSC 40.30 | 41PV04014031 | 40 | 30 | 3 | 0.9 |
| MAS403 BT40-AD+B PSC 50.50 | 41PV05014031 | 50 | 50 | 23 | 1.2 | |
| MAS403 BT50-AD+B PSC 50.40 | 41PV05015031 | 40 | 2 | 3.4 | ||
| 50 | MAS403 BT50-AD+B PSC 63.50 | 41PV06315031 | 63 | 50 | 12 | 3.5 |
| MAS403 BT50-AD+B PSC 80.70 | 41PV08015031 | 80 | 70 | 32 | 4 |
