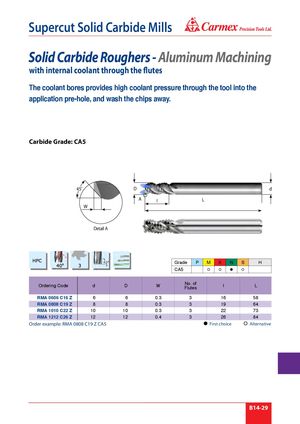

Каталог Carmex общий 2021 - страница 419

® Supercut Solid Carbide Mills Solid Carbide Roughers - Aluminum Machining with internal coolant through the flutes The coolant bores provides high coolant pressure through the tool into the application pre-hole, and wash the chips away. Carbide Grade: CA5 45˚ D d A I L W Detail A Grade P M K N S H CA5     Ordering Code d D W No. ofFlutes I L RMA 0606 C16 Z 6 6 0.3 3 16 58 RMA 0808 C19 Z 8 8 0.3 3 19 64 RMA 1010 C22 Z 10 10 0.3 3 22 73 RMA 1212 C26 Z 12 12 0.4 3 26 84 Order example: RMA 0808 C19 Z CA5 First choice Alternative B14-29
