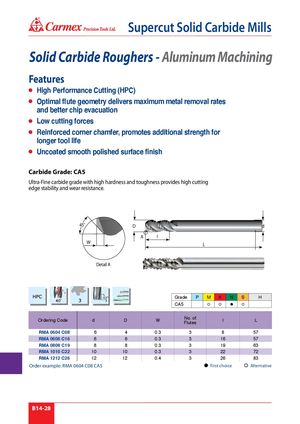

® Supercut Solid Carbide Mills Solid Carbide Roughers - Aluminum Machining Features High Performance Cutting (HPC) Optimal flute geometry delivers maximum metal removal rates and better chip evacuation Low cutting forces Reinforced corner chamfer, promotes additional strength for longer tool life Uncoated smooth polished surface finish Carbide Grade: CA5 Ultra-Fine carbide grade with high hardness and toughness provides high cutting edge stability and wear resistance. 45˚ D d A I W L Detail A Grade P M K N S H 40˚ CA5     Ordering Code d D W No. ofFlutes I L RMA 0604 C08 6 4 0.3 3 8 57 RMA 0606 C16 6 6 0.3 3 16 57 RMA 0808 C19 8 8 0.3 3 19 63 RMA 1010 C22 10 10 0.3 3 22 72 RMA 1212 C26 12 12 0.4 3 26 83 Order example: RMA 0604 C08 CA5 First choice Alternative B14-28
