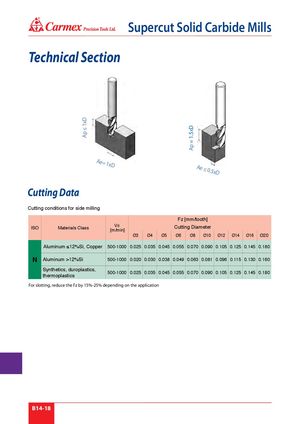

® Supercut Solid Carbide Mills Technical Section Ap ≤ 1xD Ap = 1.5xD Ae= 1 xD Ae ≤ 0.5xD Cutting Data Cutting conditions for side milling Fz [mm/tooth] Vc Cutting Diameter ISO Materials Class [m/min] Ø3 Ø4 Ø5 Ø6 Ø8 Ø10 Ø12 Ø14 Ø16 Ø20 Aluminum ≤12%Si, Copper 500-1000 0.025 0.035 0.045 0.055 0.070 0.090 0.105 0.125 0.145 0.180 N Aluminum >12%Si 500-1000 0.020 0.030 0.038 0.049 0.063 0.081 0.096 0.115 0.130 0.160 Synthetics, duroplastics, 500-1000 0.025 0.035 0.045 0.055 0.070 0.090 0.105 0.125 0.145 0.180 thermoplastics For slotting, reduce the Fz by 15%-25% depending on the application B14-18
