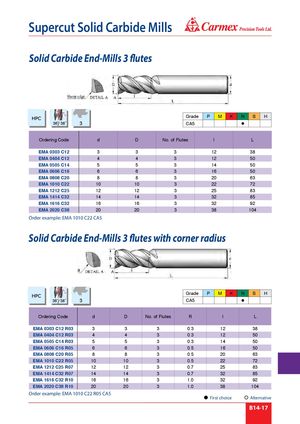

Каталог Carmex общий 2021 - страница 407

® Supercut Solid Carbide Mills Solid Carbide End-Mills 3 flutes Grade P M K N S H 36˚ 38˚ 3 CA5  Ordering Code d D No. of Flutes l L EMA 0303 C12 3 3 3 12 38 EMA 0404 C12 4 4 3 12 50 EMA 0505 C14 5 5 3 14 50 EMA 0606 C16 6 6 3 16 50 EMA 0808 C20 8 8 3 20 63 EMA 1010 C22 10 10 3 22 72 EMA 1212 C25 12 12 3 25 83 EMA 1414 C32 14 14 3 32 85 EMA 1616 C32 16 16 3 32 92 EMA 2020 C38 20 20 3 38 104 Order example: EMA 1010 C22 CA5 Solid Carbide End-Mills 3 flutes with corner radius Grade P M K N S H 36˚ 38˚ 3 CA5  Ordering Code d D No. of Flutes R l L EMA 0303 C12 R03 3 3 3 0.3 12 38 EMA 0404 C12 R03 4 4 3 0.3 12 50 EMA 0505 C14 R03 5 5 3 0.3 14 50 EMA 0606 C16 R05 6 6 3 0.5 16 50 EMA 0808 C20 R05 8 8 3 0.5 20 63 EMA 1010 C22 R05 10 10 3 0.5 22 72 EMA 1212 C25 R07 12 12 3 0.7 25 83 EMA 1414 C32 R07 14 14 3 0.7 32 85 EMA 1616 C32 R10 16 16 3 1.0 32 92 EMA 2020 C38 R10 20 20 3 1.0 38 104 Order example: EMA 1010 C22 R05 CA5 First choice Alternative B14-17
