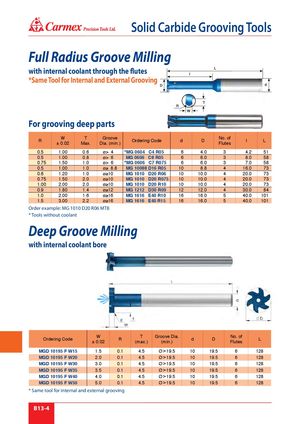

® Solid Carbide Grooving Tools Full Radius Groove Milling with internal coolant through the flutes *Same Tool for Internal and External Grooving For grooving deep parts R W± 0.02 T GrooveMax.Dia. (min.)Ordering Code d D No. ofFlutes I L 0.5 1.00 0.6 ø> 4 *MG 0604 C4 R05 6 4.0 3 4.2 51 0.5 1.00 0.8 ø> 6 MG 0606 C8 R05 6 6.0 3 8.0 58 0.75 1.50 1.0 ø> 6 *MG 0606 C7 R075 6 6.0 3 7.0 58 0.5 1.00 1.0 ø≥ 8.8 MG 10088 D16 R05 10 8.8 4 16.0 73 0.6 1.20 1.0 ø≥10 MG 1010 D20 R06 10 10.0 4 20.0 73 0.75 1.50 2.0 ø≥10 MG 1010 D20 R075 10 10.0 4 20.0 73 1.00 2.00 2.0 ø≥10 MG 1010 D20 R10 10 10.0 4 20.0 73 0.9 1.80 1.4 ø≥12 MG 1212 D30 R09 12 12.0 4 30.0 84 1.0 2.00 1.6 ø≥16 MG 1616 E40 R10 16 16.0 5 40.0 101 1.5 3.00 2.2 ø≥16 MG 1616 E40 R15 16 16.0 5 40.0 101 Order example: MG 1010 D20 R06 MT8 * Tools without coolant Deep Groove Milling with internal coolant bore Ordering Code W± 0.02 R T Groove Dia.(max.)(min.)d D No. ofFlutes L MGD 10195 F W15 1.5 0.1 4.5 Ø > 19.5 10 19.5 6 128 MGD 10195 F W20 2.0 0.1 4.5 Ø > 19.5 10 19.5 6 128 MGD 10195 F W30 3.0 0.1 4.5 Ø > 19.5 10 19.5 6 128 MGD 10195 F W35 3.5 0.1 4.5 Ø > 19.5 10 19.5 6 128 MGD 10195 F W40 4.0 0.1 4.5 Ø > 19.5 10 19.5 6 128 MGD 10195 F W50 5.0 0.1 4.5 Ø > 19.5 10 19.5 6 128 * Same tool for internal and external grooving B13-4
