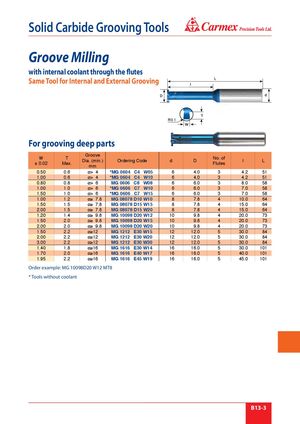

® Solid Carbide Grooving Tools Groove Milling with internal coolant through the flutes Same Tool for Internal and External Grooving 0.1 For grooving deep parts W± 0.02 TMax. GrooveDia. (min.)mmOrdering Code d D No. ofFlutes I L 0.50 0.6 ø> 4 *MG 0604 C4 W05 6 4.0 3 4.2 51 1.00 0.6 ø> 4 *MG 0604 C4 W10 6 4.0 3 4.2 51 0.80 0.8 ø> 6 MG 0606 C8 W08 6 6.0 3 8.0 58 1.00 1.0 ø> 6 *MG 0606 C7 W10 6 6.0 3 7.0 58 1.50 1.0 ø> 6 *MG 0606 C7 W15 6 6.0 3 7.0 58 1.00 1.2 ø≥ 7.8 MG 08078 D10 W10 8 7.8 4 10.0 64 1.50 1.5 ø≥ 7.8 MG 08078 D15 W15 8 7.8 4 15.0 64 2.00 1.5 ø≥ 7.8 MG 08078 D15 W20 8 7.8 4 15.0 64 1.20 1.4 ø≥ 9.8 MG 10098 D20 W12 10 9.8 4 20.0 73 1.50 2.0 ø≥ 9.8 MG 10098 D20 W15 10 9.8 4 20.0 73 2.00 2.0 ø≥ 9.8 MG 10098 D20 W20 10 9.8 4 20.0 73 1.50 2.2 ø≥12 MG 1212 E30 W15 12 12.0 5 30.0 84 2.00 2.2 ø≥12 MG 1212 E30 W20 12 12.0 5 30.0 84 3.00 2.2 ø≥12 MG 1212 E30 W30 12 12.0 5 30.0 84 1.40 1.8 ø≥16 MG 1616 E30 W14 16 16.0 5 30.0 101 1.70 2.0 ø≥16 MG 1616 E40 W17 16 16.0 5 40.0 101 1.95 2.2 ø≥16 MG 1616 E45 W19 16 16.0 5 45.0 101 Order example: MG 10098D20 W12 MT8 * Tools without coolant B13-3
