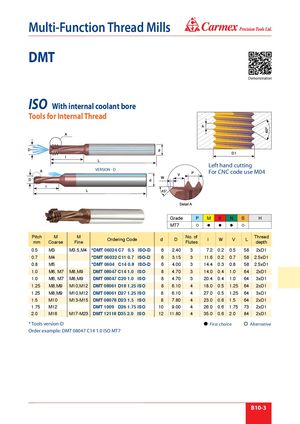

® Multi-Function Thread Mills DMT Demonstration ISO With internal coolant bore Tools for Internal Thread A D d D1 I L Left hand cutting AD VERSION - D d W V P For CNC code use M04 I L 45° Grade P M K N S H MT7      Pitch M MmmCoarseFine Ordering Code d D No. ofFlutes I W V L Threaddepth 0.5 M3 M3.5,M4 *DMT 06024 C7 0.5 ISO-D 6 2.40 3 7.2 0.2 0.5 58 2xD1 0.7 M4 *DMT 06032 C11 0.7 ISO-D 6 3.15 3 11.6 0.2 0.7 58 2.5xD1 0.8 M5 *DMT 0604 C14 0.8 ISO-D 6 4.00 3 14.4 0.3 0.8 58 2.5xD1 1.0 M6, M7 M8,M9 DMT 08047 C14 1.0 ISO 8 4.70 3 14.0 0.4 1.0 64 2xD1 1.0 M6, M7 M8,M9 DMT 08047 C20 1.0 ISO 8 4.70 3 20.4 0.4 1.0 64 3xD1 1.25 M8,M9 M10,M12 DMT 08061 D18 1.25 ISO 8 6.10 4 18.0 0.5 1.25 64 2xD1 1.25 M8,M9 M10,M12 DMT 08061 D27 1.25 ISO 8 6.10 4 27.0 0.5 1.25 64 3xD1 1.5 M10 M13-M15 DMT 08078 D23 1.5 ISO 8 7.80 4 23.0 0.6 1.5 64 2xD1 1.75 M12 DMT 1009 D26 1.75 ISO 10 9.00 4 26.0 0.6 1.75 73 2xD1 2.0 M16 M17-M23 DMT 12118 D35 2.0 ISO 12 11.80 4 35.0 0.6 2.0 84 2xD1 * Tools version-D First choice Alternative Order example: DMT 08047 C14 1.0 ISO MT7 B10-3
