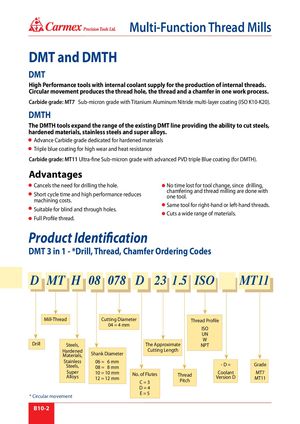

® Multi-Function Thread Mills DMT and DMTH DMT High Performance tools with internal coolant supply for the production of internal threads. Circular movement produces the thread hole, the thread and a chamfer in one work process. Carbide grade: MT7 Sub-micron grade with Titanium Aluminum Nitride multi-layer coating (ISO K10-K20). DMTH The DMTH tools expand the range of the existing DMT line providing the ability to cut steels, hardened materials, stainless steels and super alloys. Advance Carbide grade dedicated for hardened materials Triple blue coating for high wear and heat resistance Carbide grade: MT11 Ultra-fine Sub-micron grade with advanced PVD triple Blue coating (for DMTH). Advantages Cancels the need for drilling the hole. No time lost for tool change, since drilling, Short cycle time and high performance reducesCmoanctheinntisn:g costs.Page:chamfering and thread milling are done withone tool.Same tool for right-hand or left-hand threads. Suitable for blind and through holes. Cuts a wide range of materials. Full Profile thread. Product Identification DMT 3 in 1 - *Drill, Thread, Chamfer Ordering Codes D MT H 08 078 D 23 1.5 ISO MT11 Mill-Thread Cutting Diameter Thread Profile 04 = 4 mm ISO UN W Drill Steels, The Approximate NPT HardenedMaterials,Shank Diameter Cutting Length Stainless 06 = 6 mmSteels,08 =8 mm -D= Grade SuperAlloys 10 = 10 mm No. of Flutes12 = 12 mmC=3ThreadPitch Coolant MT7Version DMT11 D=4 * Circular movement E=5 B10-2
