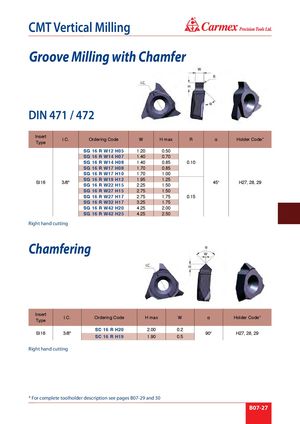

Каталог Carmex общий 2021 - страница 295

® CMT Vertical Milling Groove Milling with Chamfer W R I.C. H α DIN 471 / 472 Insert I.C. Ordering Code W H max R α Holder Code* Type SG 16 R W12 H05 1.20 0.50 SG 16 R W14 H07 1.40 0.70 SG 16 R W14 H08 1.40 0.85 0.10 SG 16 R W17 H08 1.70 0.85 SG 16 R W17 H10 1.70 1.00 SG 16 R W19 H12 1.95 1.25 SI16 3/8" 45° H27, 28, 29 SG 16 R W22 H15 2.25 1.50 SG 16 R W27 H15 2.75 1.50 SG 16 R W27 H17 2.75 1.75 0.15 SG 16 R W32 H17 3.25 1.75 SG 16 R W42 H20 4.25 2.00 SG 16 R W42 H25 4.25 2.50 Right hand cutting Chamfering α W I.C. H Insert I.C. Ordering Code H max W α Holder Code* Type SC 16 R H20 2.00 0.2 SI16 3/8" 90° H27, 28, 29 SC 16 R H19 1.90 0.5 Right hand cutting * For complete toolholder description see pages B07-29 and 30 B07-27
