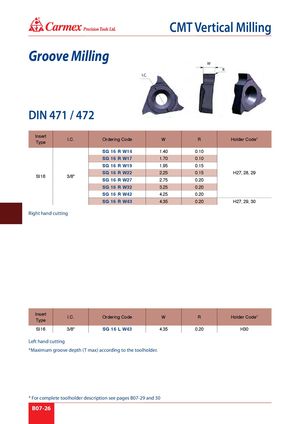

® CMT Vertical Milling Groove Milling W R I.C. DIN 471 / 472 Insert I.C. Ordering Code W R Holder Code* Type SG 16 R W14 1.40 0.10 SG 16 R W17 1.70 0.10 SG 16 R W19 1.95 0.15 SG 16 R W22 2.25 0.15 H27, 28, 29 SI16 3/8" SG 16 R W27 2.75 0.20 SG 16 R W32 3.25 0.20 SG 16 R W42 4.25 0.20 SG 16 R W43 4.35 0.20 H27, 29, 30 Right hand cutting Insert I.C. Ordering Code W R Holder Code* Type SI16 3/8" SG 16 L W43 4.35 0.20 H30 Left hand cutting *Maximum groove depth (T max) according to the toolholder. * For complete toolholder description see pages B07-29 and 30 B07-26
