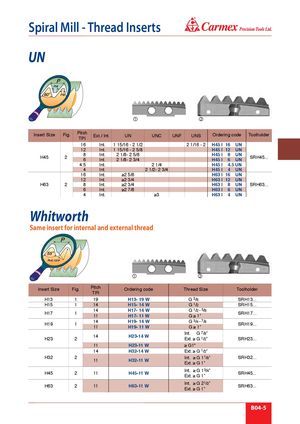

® Spiral Mill - Thread Inserts UN 1 2 Insert Size Fig. Pitch Ordering code Toolholder Ext./ Int. UN UNC UNF UNS TPI 16 Int. 1 15/16 - 2 1/2 2 1/16 - 2 H45 I 16 UN 12 Int. 1 15/16 - 2 5/8 H45 I 12 UN 8 Int. 2 1/8- 2 5/8 H45 I 8 UN H45 2 SRH45... 6 Int. 2 1/8- 2 3/4 H45 I 6 UN 4.5 Int. 2 1/4 H45 I 4.5 UN 4 Int. 2 1/2- 2 3/4 H45 I 4 UN 16 Int. ≥2 5/8 H63 I 16 UN 12 Int. ≥2 3/4 H63 I 12 UN H63 2 8 Int. ≥2 3/4 H63 I 8 UN SRH63... 6 Int. ≥2 7/8 H63 I 6 UN 4 Int. ≥3 H63 I 4 UN Whitworth Same insert for internal and external thread 1 2 Insert Size Fig. Pitch Ordering code Thread Size Toolholder TPI H13 1 19 H13- 19 W G 3/8 SRH13... H15 1 14 H15- 14 W G 1/2 SRH15... 14 H17- 14 W G 1/2 - 5/8 H17 1 SRH17... 11 H17- 11 W G ≥ 1” 14 H19- 14 W G 3/4 - 7/8 H19 1 SRH19... 11 H19- 11 W G ≥ 1” Int. G 7/8” 14 H23-14 W H23 2 Ext. ≥ G 1/2” SRH23... 11 H23-11 W ≥ G1" 14 H32-14 W Ext. ≥ G 1/2” H32 2 Int. ≥ G 11/8” SRH32... 11 H32-11 W Ext. ≥ G 1” Int. ≥ G 13/4” H45 2 11 H45-11 W SRH45... Ext. ≥ G 1” Int. ≥ G 21/2” H63 2 11 H63-11 W SRH63... Ext. ≥ G 1” B04-5
