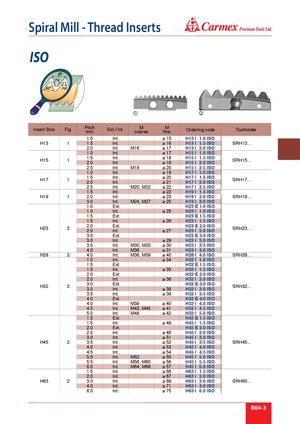

® Spiral Mill - Thread Inserts ISO 1 2 Insert Size Fig. Pitch Ext./ Int. M M Ordering code Toolholder mm coarse fine 1.0 Int. ≥ 15 H13 I 1.0 ISO H13 1 1.5 Int. ≥ 16 H13 I 1.5 ISO SRH13… 2.0 Int. M16 ≥ 17 H13 I 2.0 ISO 1.0 Int. ≥ 17 H15 I 1.0 ISO 1.5 Int. ≥ 18 H15 I 1.5 ISO H15 1 SRH15… 2.0 Int. ≥ 19 H15 I 2.0 ISO 2.5 Int. M18 ≥ 20 H15 I 2.5 ISO 1.0 Int. ≥ 19 H17 I 1.0 ISO 1.5 Int. ≥ 20 H17 I 1.5 ISO H17 1 SRH17… 2.0 Int. ≥ 21 H17 I 2.0 ISO 2.5 Int. M20, M22 ≥ 22 H17 I 2.5 ISO 1.5 Int. ≥ 22 H19 I 1.5 ISO H19 1 2.0 Int. ≥ 23 H19 I 2.0 ISO SRH19… 3.0 Int. M24, M27 ≥ 25 H19 I 3.0 ISO 1.0 Ext. H23 E 1.0 ISO 1.0 Int. ≥ 25 H23 I 1.0 ISO 1.5 Ext. H23 E 1.5 ISO 1.5 Int. ≥ 26 H23 I 1.5 ISO 2.0 Ext. H23 E 2.0 ISO H23 2 SRH23… 2.0 Int. ≥ 27 H23 I 2.0 ISO 3.0 Ext. H23 E 3.0 ISO 3.0 Int. ≥ 29 H23 I 3.0 ISO 3.5 Int. M30, M33 ≥ 30 H23 I 3.5 ISO 4.0 Int. M36 ≥ 31 H23 I 4.0 ISO H28 2 4.0 Int. M36, M39 ≥ 40 H28 I 4.0 ISO SRH28… 1.0 Int. ≥ 34 H32 I 1.0 ISO 1.5 Ext. H32 E 1.5 ISO 1.5 Int. ≥ 35 H32 I 1.5 ISO 2.0 Ext. H32 E 2.0 ISO 2.0 Int. ≥ 36 H32 I 2.0 ISO 3.0 Ext. H32 E 3.0 ISO H32 2 SRH32... 3.0 Int. ≥ 38 H32 I 3.0 ISO 3.5 Int. ≥ 39 H32 I 3.5 ISO 4.0 Ext. H32 E 4.0 ISO 4.0 Int. M39 ≥ 40 H32 I 4.0 ISO 4.5 Int. M42, M45 ≥ 41 H32 I 4.5 ISO 5.0 Int. M48 ≥ 42 H32 I 5.0 ISO 1.5 Ext. H45 E 1.5 ISO 1.5 Int. ≥ 48 H45 I 1.5 ISO 2.0 Ext. H45 E 2.0 ISO 2.0 Int. ≥ 49 H45 I 2.0 ISO 3.0 Int. ≥ 51 H45 I 3.0 ISO H45 2 3.5 Int. ≥ 52 H45 I 3.5 ISO SRH45... 4.0 Int. ≥ 53 H45 I 4.0 ISO 4.5 Int. ≥ 54 H45 I 4.5 ISO 5.0 Int. M52 ≥ 55 H45 I 5.0 ISO 5.5 Int. M56, M60 ≥ 56 H45 I 5.5 ISO 6.0 Int. M64, M68 ≥ 57 H45 I 6.0 ISO 1.5 Int. ≥ 66 H63 I 1.5 ISO 2.0 Int. ≥ 67 H63 I 2.0 ISO H63 2 3.0 Int. ≥ 69 H63 I 3.0 ISO SRH63... 4.0 Int. ≥ 71 H63 I 4.0 ISO 6.0 Int. ≥ 75 H63 I 6.0 ISO B04-3
