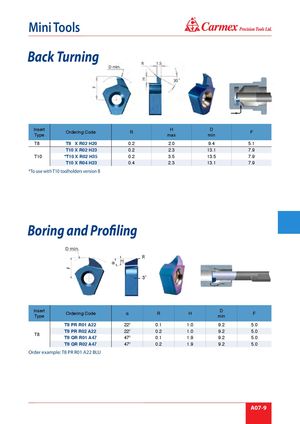

® Mini Tools Back Turning D min. R 1.5 H 30˚ F Insert H D Ordering Code R F Type max min T8 T8 X R02 H20 0.2 2.0 9.4 5.1 T10 X R02 H23 0.2 2.3 13.1 7.9 T10 *T10 X R02 H35 0.2 3.5 13.5 7.9 T10 X R04 H23 0.4 2.3 13.1 7.9 *To use with T10 toolholders version B Boring and Profiling D min. R α H F 3˚ Insert D Ordering Code α R H F Type min T8 PR R01 A22 22⁰ 0.1 1.0 9.2 5.0 T8 PR R02 A22 22⁰ 0.2 1.0 9.2 5.0 T8 T8 QR R01 A47 47⁰ 0.1 1.9 9.2 5.0 T8 QR R02 A47 47⁰ 0.2 1.9 9.2 5.0 Order example: T8 PR R01 A22 BLU A07-9
