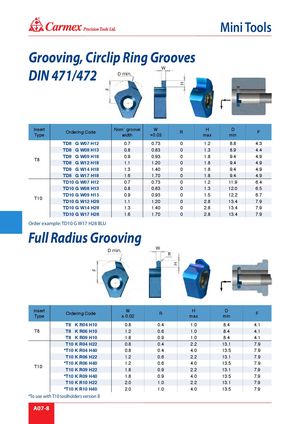

® Mini Tools Grooving, Circlip Ring Grooves W DIN 471/472 D min. H F Insert Nom` groove W H D Ordering Code +0.03 R F Type width max min TD8 G W07 H12 0.7 0.73 0 1.2 8.8 4.3 TD8 G W08 H13 0.8 0.83 0 1.3 8.9 4.4 TD8 G W09 H18 0.9 0.93 0 1.8 9.4 4.9 T8 TD8 G W12 H18 1.1 1.20 0 1.8 9.4 4.9 TD8 G W14 H18 1.3 1.40 0 1.8 9.4 4.9 TD8 G W17 H18 1.6 1.70 0 1.8 9.4 4.9 TD10 G W07 H12 0.7 0.73 0 1.2 11.9 6.4 TD10 G W08 H13 0.8 0.83 0 1.3 12.0 6.5 TD10 G W09 H15 0.9 0.93 0 1.5 12.2 6.7 T10 TD10 G W12 H28 1.1 1.20 0 2.8 13.4 7.9 TD10 G W14 H28 1.3 1.40 0 2.8 13.4 7.9 TD10 G W17 H28 1.6 1.70 0 2.8 13.4 7.9 Order example: TD10 G W17 H28 BLU Full Radius Grooving W D min. R H F Insert W H D Ordering Code R F Type ± 0.02 max min T8 K R04 H10 0.8 0.4 1.0 8.4 4.1 T8 T8 K R06 H10 1.2 0.6 1.0 8.4 4.1 T8 K R09 H10 1.8 0.9 1.0 8.4 4.1 T10 K R04 H22 0.8 0.4 2.2 13.1 7.9 *T10 K R04 H40 0.8 0.4 4.0 13.5 7.9 T10 K R06 H22 1.2 0.6 2.2 13.1 7.9 *T10 K R06 H40 1.2 0.6 4.0 13.5 7.9 T10 T10 K R09 H22 1.8 0.9 2.2 13.1 7.9 *T10 K R09 H40 1.8 0.9 4.0 13.5 7.9 T10 K R10 H22 2.0 1.0 2.2 13.1 7.9 *T10 K R10 H40 2.0 1.0 4.0 13.5 7.9 *To use with T10 toolholders version B A07-8
