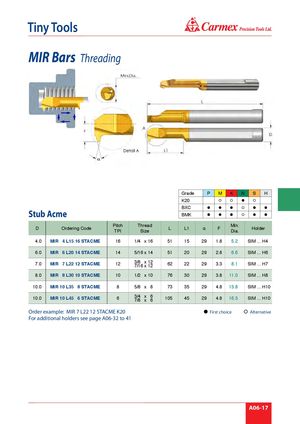

Каталог Carmex общий 2021 - страница 125

® Tiny Tools MIR Bars Threading Grade P M K N S H K20     BXC       Stub Acme BMK       Pitch Thread Min. D Ordering Code L L1 α F Holder TPI Size Dia. 4.0 MIR 4 L15 16 STACME 16 1/4 x 16 51 15 29 1.8 5.2 SIM ... H4 6.0 MIR 6 L20 14 STACME 14 5/16 x 14 51 20 29 2.8 6.6 SIM ... H6 7.0 MIR 7 L22 12 STACME 12 3/8 x 12 62 22 29 3.3 8.1 SIM ... H7 7/16 x 12 8.0 MIR 8 L30 10 STACME 10 1/2 x 10 76 30 29 3.8 11.0 SIM ... H8 10.0 MIR 10 L35 8 STACME 8 5/8 x 8 73 35 29 4.8 13.8 SIM ... H10 10.0 MIR 10 L45 6 STACME 6 3/4 x 6 105 45 29 4.8 16.3 SIM ... H10 7/8 x 6 Order example: MIR 7 L22 12 STACME K20 First choice Alternative For additional holders see page A06-32 to 41 A06-17
