Каталог Carmex общий 2021 - страница 124

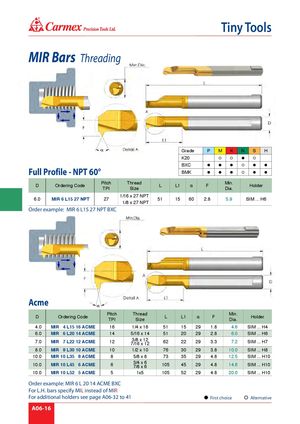

® Tiny Tools MIR Bars Threading Grade P M K N S H K20     BXC       Full Profile - NPT 60° BMK       Pitch Thread Min. D Ordering Code L L1 α F Holder TPI Size Dia. 1/16 x 27 NPT 6.0 MIR 6 L15 27 NPT 27 51 15 60 2.8 5.9 SIM ... H6 1/8 x 27 NPT Order example: MIR 6 L15 27 NPT BXC Acme Pitch Thread Min. D Ordering Code L L1 α F Holder TPI Size Dia. 4.0 MIR 4 L15 16 ACME 16 1/4 x 16 51 15 29 1.8 4.6 SIM ... H4 6.0 MIR 6 L20 14 ACME 14 5/16 x 14 51 20 29 2.8 6.0 SIM ... H6 7.0 MIR 7 L22 12 ACME 12 3/8 x 12 62 22 29 3.3 7.2 SIM ... H7 7/16 x 12 8.0 MIR 8 L30 10 ACME 10 1/2 x 10 76 30 29 3.8 10.0 SIM ... H8 10.0 MIR 10 L35 8 ACME 8 5/8 x 8 73 35 29 4.8 12.5 SIM ... H10 10.0 MIR 10 L45 6 ACME 6 3/4 x 6 105 45 29 4.8 14.6 SIM ... H10 7/8 x 6 10.0 MIR 10 L52 5 ACME 5 1x5 105 52 29 4.8 20.0 SIM ... H10 Order example: MIR 6 L 20 14 ACME BXC For L.H. bars specify MIL instead of MIR For additional holders see page A06-32 to 41 First choice Alternative A06-16
