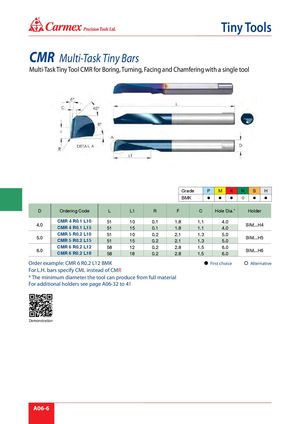

® Tiny Tools CMR Multi-Task Tiny Bars Multi-Task Tiny Tool CMR for Boring, Turning, Facing and Chamfering with a single tool Grade P M K N S H BMK       D Ordering Code L L1 R F C Hole Dia.* Holder CMR 4 R0.1 L10 51 10 0.1 1.8 1.1 4.0 4.0 SIM...H4 CMR 4 R0.1 L15 51 15 0.1 1.8 1.1 4.0 CMR 5 R0.2 L10 51 10 0.2 2.1 1.3 5.0 5.0 SIM...H5 CMR 5 R0.2 L15 51 15 0.2 2.1 1.3 5.0 CMR 6 R0.2 L12 58 12 0.2 2.8 1.5 6.0 6.0 SIM...H6 CMR 6 R0.2 L18 58 18 0.2 2.8 1.5 6.0 Order example: CMR 6 R0.2 L12 BMK First choice Alternative For L.H. bars specify CML instead of CMR * The minimum diameter the tool can produce from full material For additional holders see page A06-32 to 41 Demonstration A06-6
