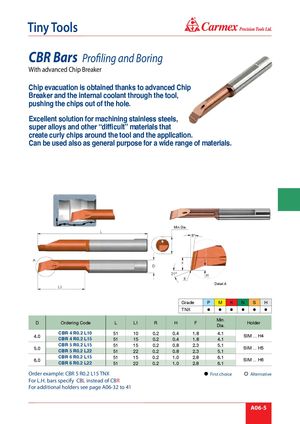

Каталог Carmex общий 2021 - страница 113

® Tiny Tools CBR Bars Profiling and Boring With advanced Chip Breaker Chip evacuation is obtained thanks to advanced Chip Breaker and the internal coolant through the tool, pushing the chips out of the hole. Excellent solution for machining stainless steels, super alloys and other “difficult” materials that create curly chips around the tool and the application. Can be used also as general purpose for a wide range of materials. Min.Dia. Detail A Grade P M K N S H TNX       Min. D Ordering Code L L1 R H F Holder Dia. CBR 4 R0.2 L10 51 10 0.2 0.4 1.8 4.1 4.0 SIM ... H4 CBR 4 R0.2 L15 51 15 0.2 0.4 1.8 4.1 CBR 5 R0.2 L15 51 15 0.2 0.8 2.3 5.1 5.0 SIM ... H5 CBR 5 R0.2 L22 51 22 0.2 0.8 2.3 5.1 CBR 6 R0.2 L15 51 15 0.2 1.0 2.8 6.1 6.0 SIM ... H6 CBR 6 R0.2 L22 51 22 0.2 1.0 2.8 6.1 Order example: CBR 5 R0.2 L15 TNX First choice Alternative For L.H. bars specify CBL instead of CBR For additional holders see page A06-32 to 41 A06-5
