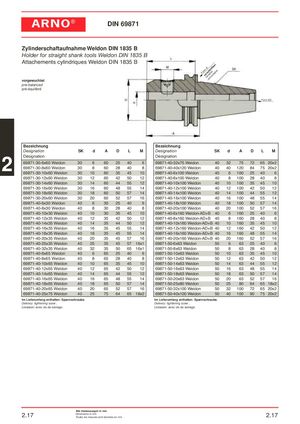

Zylinderschaftaufnahme Weldon DIN 1835 B
Holder for straight shank tools Weldon DIN 1835 B
Attachements cylindriques Weldon DIN 1835 B
vorgewuchtet pre-balanced pré-équilibré
hließbar Form Bsc ver closable verrouillable
Form AD
| Bezeichnung Designation Désignation | SK | d | A | D | L | M | Bezeichnung Designation Désignation | SK | d | A | D | L | M |
| 69871-30-6x60 Weldon | 30 | 6 | 60 | 25 | 40 | 6 | 69871-40-32x75 Weldon | 40 | 32 | 75 | 72 | 65 | 20x2 |
| 69871-30-8x60 Weldon | 30 | 8 | 60 | 28 | 40 | 8 | 69871-40-40x120 Weldon | 40 | 40 | 120 | 84 | 75 | 20x2 |
| 69871-30-10x60 Weldon | 30 | 10 | 60 | 35 | 45 | 10 | 69871-40-6x100 Weldon | 40 | 6 | 100 | 25 | 40 | 6 |
| 69871-30-12x60 Weldon | 30 | 12 | 60 | 42 | 50 | 12 | 69871-40-8x100 Weldon | 40 | 8 | 100 | 28 | 40 | 8 |
| 69871-30-14x60 Weldon | 30 | 14 | 60 | 44 | 55 | 12 | 69871-40-10x100 Weldon | 40 | 10 | 100 | 35 | 45 | 10 |
| 69871-30-16x60 Weldon | 30 | 16 | 60 | 48 | 55 | 14 | 69871-40-12x100 Weldon | 40 | 12 | 100 | 42 | 50 | 12 |
| 69871-30-18x60 Weldon | 30 | 18 | 60 | 50 | 57 | 14 | 69871-40-14x100 Weldon | 40 | 14 | 100 | 44 | 55 | 12 |
| 69871-30-20x60 Weldon | 30 | 20 | 60 | 52 | 57 | 16 | 69871-40-16x100 Weldon | 40 | 16 | 100 | 48 | 55 | 14 |
| 69871-40-6x30 Weldon | 40 | 6 | 30 | 25 | 40 | 6 | 69871-40-18x100 Weldon | 40 | 18 | 100 | 50 | 57 | 14 |
| 69871-40-8x30 Weldon | 40 | 8 | 30 | 28 | 40 | 8 | 69871-40-20x100 Weldon | 40 | 20 | 100 | 52 | 57 | 16 |
| 69871-40-10x30 Weldon | 40 | 10 | 30 | 35 | 45 | 10 | 69871-40-6x160 Weldon-AD+B | 40 | 6 | 160 | 25 | 40 | 6 |
| 69871-40-12x35 Weldon | 40 | 12 | 35 | 42 | 50 | 12 | 69871-40-8x160 Weldon-AD+B | 40 | 8 | 160 | 28 | 40 | 8 |
| 69871-40-14x35 Weldon | 40 | 14 | 35 | 44 | 50 | 12 | 69871-40-10x160 Weldon-AD+B | 40 | 10 | 160 | 35 | 45 | 10 |
| 69871-40-16x35 Weldon | 40 | 16 | 35 | 45 | 55 | 14 | 69871-40-12x160 Weldon-AD+B | 40 | 12 | 160 | 42 | 50 | 12 |
| 69871-40-18x35 Weldon | 40 | 18 | 35 | 45 | 55 | 14 | 69871-40-16x160 Weldon-AD+B | 40 | 16 | 160 | 48 | 55 | 14 |
| 69871-40-20x35 Weldon | 40 | 20 | 35 | 45 | 57 | 16 | 69871-40-20x160 Weldon-AD+B | 40 | 20 | 160 | 52 | 57 | 16 |
| 69871-40-25x35 Weldon | 40 | 25 | 35 | 45 | 57 | 16x1 | 69871-50-6x63 Weldon | 50 | 6 | 63 | 25 | 40 | 6 |
| 69871-40-32x35 Weldon | 40 | 32 | 35 | 50 | 65 | 16x1 | 69871-50-8x63 Weldon | 50 | 8 | 63 | 28 | 40 | 8 |
| 69871-40-6x65 Weldon | 40 | 6 | 65 | 25 | 40 | 6 | 69871-50-10x63 Weldon | 50 | 10 | 63 | 35 | 45 | 10 |
| 69871-40-8x65 Weldon | 40 | 8 | 65 | 28 | 40 | 8 | 69871-50-12x63 Weldon | 50 | 12 | 63 | 42 | 50 | 12 |
| 69871-40-10x65 Weldon | 40 | 10 | 65 | 35 | 45 | 10 | 69871-50-14x63 Weldon | 50 | 14 | 63 | 44 | 55 | 12 |
| 69871-40-12x65 Weldon | 40 | 12 | 65 | 42 | 50 | 12 | 69871-50-16x63 Weldon | 50 | 16 | 63 | 48 | 55 | 14 |
| 69871-40-14x65 Weldon | 40 | 14 | 65 | 44 | 55 | 12 | 69871-50-18x63 Weldon | 50 | 18 | 63 | 50 | 57 | 14 |
| 69871-40-16x65 Weldon | 40 | 16 | 65 | 48 | 55 | 14 | 69871-50-20x63 Weldon | 50 | 20 | 63 | 52 | 57 | 16 |
| 69871-40-18x65 Weldon | 40 | 18 | 65 | 50 | 57 | 14 | 69871-50-25x80 Weldon | 50 | 25 | 80 | 64 | 65 | 18x2 |
| 69871-40-20x65 Weldon | 40 | 20 | 65 | 52 | 57 | 16 | 69871-50-32x100 Weldon | 50 | 32 | 100 | 72 | 65 | 20x2 |
| 69871-40-25x75 Weldon | 40 | 25 | 75 | 64 | 65 | 18x2 | 69871-50-40x100 Weldon | 50 | 40 | 100 | 90 | 75 | 20x2 |
Im Lieferumfang enthalten: Spannschraube. Im Lieferumfang enthalten: Spannschraube. Delivery: tightening scew . Delivery: tightening scew . Livrasion: avec vis de serrage. Livrasion: avec vis de serrage.
