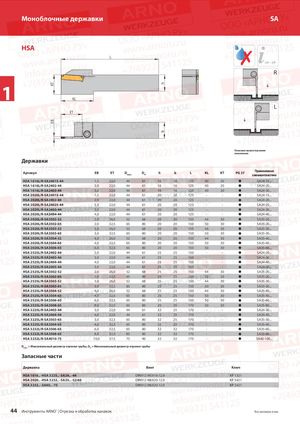

Каталог ARNO обработка канавок и отрезка 2018 - страница 44
Навигация
Каталог ARNO инструмент и сменные пластины для токарной обработки и обработки резьбы
Каталог ARNO фрезерование 2016
Каталог ARNO автоматизированные системы хранения инструмента
Каталог ARNO оснастка для токарного и фрезерного оборудования
Каталог ARNO фрезы и сменные пластины для фрезерной обработки 2015
HSA
1
KL
ET
L
114 – 119
R
L
Показано правостороннее исполнение
Державки
| Артикул | EB | ET | Dмакс | DR | h | b | L | KL | KT | PG 37 | Применяемая сменная пластина |
| HSA 1616L/R-SA24015-44 | 1,5 | 22,0 | 44 | 61 | 16 | 16 | 125 | 40 | 20 | | SA24-15... |
| HSA 1616L/R-SA2402-44 | 2,0 | 22,0 | 44 | 61 | 16 | 16 | 125 | 40 | 20 | | SA24-20... |
| HSA 1616L/R-SA2403-44 | 3,0 | 22,0 | 44 | 61 | 16 | 16 | 125 | 40 | 20 | | SA24-30... |
| HSA 2020L/R-SA24015-44 | 1,5 | 22,0 | 44 | 61 | 20 | 20 | 125 | - | - | | SA24-15... |
| HSA 2020L/R-SA2402-44 | 2,0 | 22,0 | 44 | 61 | 20 | 20 | 125 | - | - | | SA24-20... |
| HSA 2020L/R-SA24025-44 | 2,5 | 22,0 | 44 | 61 | 20 | 20 | 125 | - | - | | SA24-25... |
| HSA 2020L/R-SA2403-44 | 3,0 | 22,0 | 44 | 61 | 20 | 20 | 125 | - | - | | SA24-30... |
| HSA 2020L/R-SA2404-44 | 4,0 | 22,0 | 44 | 61 | 20 | 20 | 125 | - | - | | SA24-40... |
| HSA 2020L/R-SA3502-52 | 2,0 | 26,0 | 52 | 68 | 20 | 20 | 150 | 44 | 30 | | SA35-20... |
| HSA 2020L/R-SA3502-65 | 2,0 | 32,5 | 65 | 80 | 20 | 20 | 150 | 50 | 30 | | SA35-20... |
| HSA 2020L/R-SA3503-52 | 3,0 | 26,0 | 52 | 68 | 20 | 20 | 150 | 44 | 30 | | SA35-30... |
| HSA 2020L/R-SA3503-65 | 3,0 | 32,5 | 65 | 80 | 20 | 20 | 150 | 50 | 30 | | SA35-30... |
| HSA 2020L/R-SA3504-52 | 4,0 | 26,0 | 52 | 68 | 20 | 20 | 150 | 44 | 30 | | SA35-40... |
| HSA 2020L/R-SA3504-65 | 4,0 | 32,5 | 65 | 80 | 20 | 20 | 150 | 50 | 30 | | SA35-40... |
| HSA 2020L/R-SA3506-65 | 6,0 | 32,5 | 65 | 80 | 20 | 20 | 150 | 50 | 30 | | SA35-60... |
| HSA 2525L/R-SA2402-44 | 2,0 | 22,0 | 44 | 61 | 25 | 25 | 150 | - | - | | SA24-20... |
| HSA 2525L/R-SA2403-44 | 3,0 | 22,0 | 44 | 61 | 25 | 25 | 150 | - | - | | SA24-30... |
| HSA 2525L/R-SA2404-44 | 4,0 | 22,0 | 44 | 61 | 25 | 25 | 150 | - | - | | SA24-40... |
| HSA 2525L/R-SA2405-44 | 5,0 | 22,0 | 44 | 61 | 25 | 25 | 150 | - | - | | SA24-50... |
| HSA 2525L/R-SA3502-52 | 2,0 | 26,0 | 52 | 68 | 25 | 25 | 150 | 44 | 30 | | SA35-20... |
| HSA 2525L/R-SA3502-65 | 2,0 | 32,5 | 65 | 80 | 25 | 25 | 150 | 50 | 30 | | SA35-20... |
| HSA 2525L/R-SA3503-52 | 3,0 | 26,0 | 52 | 68 | 25 | 25 | 150 | 44 | 30 | | SA35-30... |
| HSA 2525L/R-SA3503-65 | 3,0 | 32,5 | 65 | 80 | 25 | 25 | 150 | 50 | 30 | | SA35-30... |
| HSA 2525L/R-SA3504-52 | 4,0 | 26,0 | 52 | 68 | 25 | 25 | 150 | 44 | 30 | | SA35-40... |
| HSA 2525L/R-SA3504-65 | 4,0 | 32,5 | 65 | 80 | 25 | 25 | 150 | 50 | 30 | | SA35-40... |
| HSA 2525L/R-SA3506-65 | 6,0 | 32,5 | 65 | 80 | 25 | 25 | 150 | 50 | 30 | | SA35-60... |
| HSA 2525L/R-SA3508-65 | 8,0 | 32,5 | 65 | 80 | 25 | 25 | 170 | 50 | 30 | | SA35-80... |
| HSA 3225L/R-SA2403-44 | 3,0 | 22,0 | 44 | 61 | 32 | 25 | 170 | - | - | | SA24-30... |
| HSA 3225L/R-SA2404-44 | 4,0 | 22,0 | 44 | 61 | 32 | 25 | 170 | - | - | | SA24-40... |
| HSA 3225L/R-SA3503-65 | 3,0 | 32,5 | 65 | 80 | 32 | 25 | 170 | - | - | | SA35-30... |
| HSA 3225L/R-SA3504-65 | 4,0 | 32,5 | 65 | 80 | 32 | 25 | 170 | - | - | | SA35-40... |
| HSA 3232L/R-SA3506-65 | 6,0 | 32,5 | 65 | 80 | 32 | 32 | 170 | - | - | | SA35-60... |
| HSA 3232L/R-SA3508-65 | 8,0 | 32,5 | 65 | 80 | 32 | 32 | 170 | - | - | | SA35-80... |
| HSA 3232L/R-SA4010-75 | 10,0 | 37,5 | 75 | 90 | 32 | 32 | 170 | - | - | | SA40-100... |
D = Максимальный диаметр отрезки трубы, D = Максимальный диаметр отрезки трубы макс R
Запасные части
| Державка | Винт | Ключ |
| HSA 1616.. -HSA 3225.. -SA24.. -44 | DIN912 M5X16-12.9 | KP 1321 |
| HSA 2020.. -HSA 3232.. -SA35.. -52/65 | DIN912 M6X20-12.9 | KP 5421 |
| HSA 3232.. -SA40.. -75 | DIN912 M6X20-12.9 | KP 5421 |
