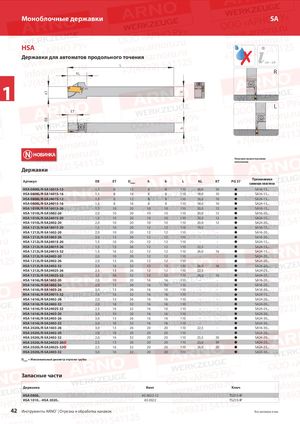

Каталог ARNO обработка канавок и отрезка 2018 - страница 42
Навигация
Каталог ARNO инструмент и сменные пластины для токарной обработки и обработки резьбы
Каталог ARNO фрезерование 2016
Каталог ARNO автоматизированные системы хранения инструмента
Каталог ARNO оснастка для токарного и фрезерного оборудования
Каталог ARNO фрезы и сменные пластины для фрезерной обработки 2015
HSA ✗
Державки для автоматов продольного точения
L KL
1
ET
114 – 119
R
L
НОВИНКА
| Державки | Показано правостороннее исполнение | ||||||||
| Артикул | EB | ET | Dмакс | h | b | L | KL | KT | PG 37 Применяемая сменная пластина |
| HSA 0808L/R-SA16015-12 | 1,5 | 6 | 12 | 8 | 8 | 110 | 16,0 | 10 | SA16-15... |
| HSA 0808L/R-SA16015-16 | 1,5 | 8 | 16 | 8 | 8 | 110 | 18,0 | 10 | SA16-15... |
| HSA 0808L/R-SA24015-12 | 1,5 | 6 | 12 | 8 | 8 | 110 | 16,0 | 10 | SA24-15... |
| HSA 0808L/R-SA24015-16 | 1,5 | 8 | 16 | 8 | 8 | 110 | 18,0 | 10 | SA24-15... |
| HSA 1010L/R-SA16015-20 | 1,5 | 10 | 20 | 10 | 10 | 110 | 20,0 | 12 | SA16-15... |
| HSA 1010L/R-SA1602-20 | 2,0 | 10 | 20 | 10 | 10 | 110 | 20,0 | 12 | SA16-20... |
| HSA 1010L/R-SA24015-20 | 1,5 | 10 | 20 | 10 | 10 | 110 | 20,0 | 12 | SA24-15... |
| HSA 1010L/R-SA2402-20 | 2,0 | 10 | 20 | 10 | 10 | 110 | 20,0 | 12 | SA24-20... |
| HSA 1212L/R-SA16015-20 | 1,5 | 10 | 20 | 12 | 12 | 110 | 19,5 | - | SA16-15... |
| HSA 1212L/R-SA1602-20 | 2,0 | 10 | 20 | 12 | 12 | 110 | - | - | SA16-20... |
| HSA 1212L/R-SA1603-26 | 3,0 | 13 | 26 | 12 | 12 | 110 | - | - | SA16-30... |
| HSA 1212L/R-SA24015-20 | 1,5 | 10 | 20 | 12 | 12 | 110 | - | - | SA24-15... |
| HSA 1212L/R-SA24015-26 | 1,5 | 13 | 26 | 12 | 12 | 110 | 22,5 | - | SA24-15... |
| HSA 1212L/R-SA24015-32 | 1,5 | 16 | 32 | 12 | 12 | 110 | 26,0 | 16 | SA24-15... |
| HSA 1212L/R-SA2402-20 | 2,0 | 10 | 20 | 12 | 12 | 110 | - | - | SA24-20... |
| HSA 1212L/R-SA2402-26 | 2,0 | 13 | 26 | 12 | 12 | 110 | - | - | SA24-20... |
| HSA 1212L/R-SA2402-32 | 2,0 | 16 | 32 | 12 | 12 | 110 | 26,0 | 16 | SA24-20... |
| HSA 1212L/R-SA24025-26 | 2,5 | 13 | 26 | 12 | 12 | 110 | 22,5 | - | SA24-25... |
| HSA 1212L/R-SA24025-32 | 2,5 | 16 | 32 | 12 | 12 | 110 | 26,0 | 16 | SA24-25... |
| HSA 1616L/R-SA1602-20 | 2,0 | 10 | 20 | 16 | 16 | 110 | - | - | SA16-20... |
| HSA 1616L/R-SA1602-26 | 2,0 | 13 | 26 | 16 | 16 | 110 | - | - | SA16-20... |
| HSA 1616L/R-SA1603-26 | 3,0 | 13 | 26 | 16 | 16 | 110 | - | - | SA16-30... |
| HSA 1616L/R-SA24015-32 | 1,5 | 16 | 32 | 16 | 16 | 110 | - | - | SA24-15... |
| HSA 1616L/R-SA2402-26 | 2,0 | 13 | 26 | 16 | 16 | 110 | - | - | SA24-20... |
| HSA 1616L/R-SA2402-32 | 2,0 | 16 | 32 | 16 | 16 | 110 | - | - | SA24-20... |
| HSA 1616L/R-SA24025-32 | 2,5 | 16 | 32 | 16 | 16 | 110 | - | - | SA24-25... |
| HSA 1616L/R-SA2403-20 | 3,0 | 10 | 20 | 16 | 16 | 110 | - | - | SA24-30... |
| HSA 1616L/R-SA2403-26 | 3,0 | 13 | 26 | 16 | 16 | 110 | - | - | SA24-30... |
| HSA 1616L/R-SA2403-32 | 3,0 | 16 | 32 | 16 | 16 | 110 | - | - | SA24-30... |
| HSA 2020L/R-SA1603-26 | 3,0 | 13 | 26 | 20 | 20 | 110 | 22,5 | - | SA16-30... |
| HSA 2020L/R-SA2402-20 | 2,0 | 10 | 20 | 20 | 20 | 110 | - | - | SA24-20... |
| HSA 2020L/R-SA2402-32 | 2,0 | 16 | 32 | 20 | 20 | 110 | 25,5 | 20 | SA24-20... |
| HSA 2020L/R-SA24025-26N | 2,5 | 13 | 26 | 20 | 20 | 110 | 23,0 | 20 | SA24-25... |
| HSA 2020L/R-SA24025-32N | 2,5 | 16 | 32 | 20 | 20 | 110 | 26,0 | 20 | SA24-25... |
| HSA 2020L/R-SA2403-32 | 3,0 | 16 | 32 | 20 | 20 | 110 | - | - | SA24-30... |
D = Максимальный диаметр отрезки трубы макс
Запасные части
| Державка | Винт | Ключ |
| HSA 0808.. | AS 0022-12 | T5215-IP |
| HSA 1010.. -HSA 2020.. | AS 0022 | T5215-IP |
