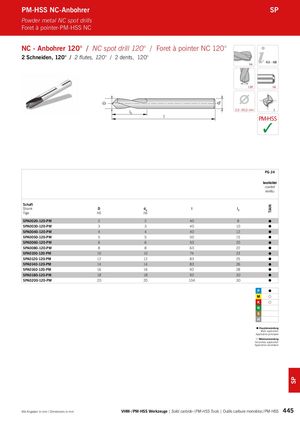

Каталог ARNO монолитный осевой инструмент - страница 445

D dA TiAlN SP l PM-HSS NC-Anbohrer SP Powder metal NC spot drills Foret à pointer-PM-HSS NC NC - Anbohrer 120° / NC spot drill 120° / Foret à pointer NC 120° 2 Schneiden, 120° / 2 flutes, 120° / 2 dents, 120° h6 450 – 488 120° h6 l2 2,0 -20,0 mm 2 PM-HSS ✓ PG 24 beschichtet coated revêtu Schaft Shank D dA l l2 Tige h6 h6 SPA0020-120-PM 2 2 40 8  SPA0030-120-PM 3 3 40 10  SPA0040-120-PM 4 4 40 12  SPA0050-120-PM 5 5 50 15  SPA0060-120-PM 6 6 50 20  SPA0080-120-PM 8 8 63 22  SPA0100-120-PM 10 10 74 23  SPA0120-120-PM 12 12 83 25  SPA0140-120-PM 14 14 83 26  SPA0160-120-PM 16 16 92 28  SPA0180-120-PM 18 18 92 30  SPA0200-120-PM 20 20 104 30      Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 445
