Каталог ARNO монолитный осевой инструмент - страница 423

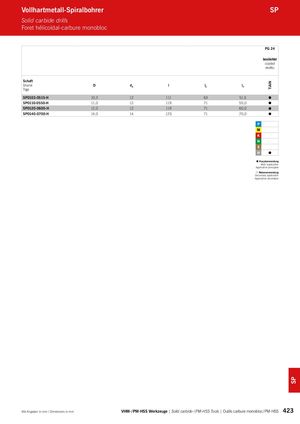

TiAlN SP Vollhartmetall-Spiralbohrer SP Solid carbide drills Foret hélicoïdal-carbure monobloc PG 24 beschichtet coated revêtu Schaft Shank D dA l l2 l4 Tige SP0103-0515-H 10,3 12 111 63 51,5  SP0110-0550-H 11,0 12 119 71 55,0  SP0120-0600-H 12,0 12 119 71 60,0  SP0140-0700-H 14,0 14 125 71 70,0    Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 423
