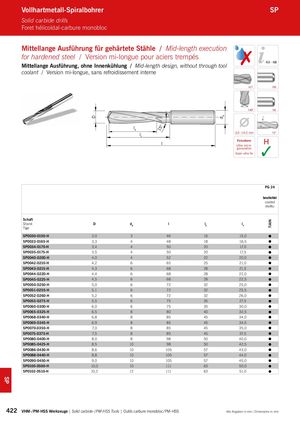

Каталог ARNO монолитный осевой инструмент - страница 422

D 15° dA TiAlN Vollhartmetall-Spiralbohrer SP Solid carbide drills Foret hélicoïdal-carbure monobloc Mittellange Ausführung für gehärtete Stähle / Mid-length execution for hardened steel / Version mi-longue pour aciers trempés ✗ 450 – 488 Mittellange Ausführung, ohne Innenkühlung / Mid-length design, without through tool coolant / Version mi-longue, sans refroidissement interne m7 HA 140° h6 l4 l2 3,0 -14,0 mm 15° l Feinstkorn HUltra microgranulationGrain ultra fin✓ PG 24 beschichtet coated revêtu Schaft Shank D dA l l2 l4 Tige SP0030-0150-H 3,0 3 46 16 15,0  SP0033-0165-H 3,3 4 48 18 16,5  SP0034-0170-H 3,4 4 50 20 17,0  SP0035-0175-H 3,5 4 50 20 17,5  SP0040-0200-H 4,0 4 52 22 20,0  SP0042-0210-H 4,2 6 65 25 21,0  SP0043-0215-H 4,3 6 68 28 21,5  SP0044-0220-H 4,4 6 68 28 22,0  SP0045-0225-H 4,5 6 68 28 22,5  SP0050-0250-H 5,0 6 72 32 25,0  SP0051-0255-H 5,1 6 72 32 25,5  SP0052-0260-H 5,2 6 72 32 26,0  SP0055-0275-H 5,5 6 75 35 27,5  SP0060-0300-H 6,0 6 75 35 30,0  SP0065-0325-H 6,5 8 80 40 32,5  SP0068-0340-H 6,8 8 85 45 34,0  SP0069-0345-H 6,9 8 85 45 34,5  SP0070-0350-H 7,0 8 85 45 35,0  SP0075-0375-H 7,5 8 85 45 37,5  SP0080-0400-H 8,0 8 98 50 40,0  SP0085-0425-H 8,5 10 98 50 42,5  SP0086-0430-H 8,6 10 105 57 43,0  SP0088-0440-H 8,8 10 105 57 44,0  SP0090-0450-H 9,0 10 105 57 45,0  SP0100-0500-H 10,0 10 111 63 50,0  SP0102-0510-H 10,2 12 111 63 51,0  422 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm SP
