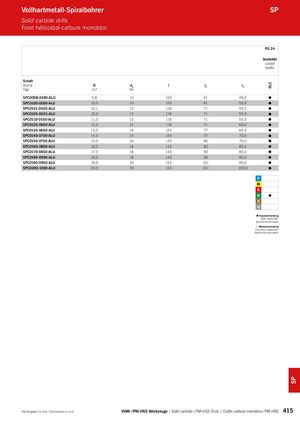

DLC SP Vollhartmetall-Spiralbohrer SP Solid carbide drills Foret hélicoïdal-carbure monobloc PG 24 beschichtet coated revêtu Schaft Shank D dA l l2 l4 Tige m7 h6 SPC0098-0490-ALU 9,8 10 103 61 49,0  SPC0100-0500-ALU 10,0 10 103 61 50,0  SPC0101-0505-ALU 10,1 12 118 71 50,5  SPC0105-0525-ALU 10,5 12 118 71 52,5  SPC0110-0550-ALU 11,0 12 118 71 55,0  SPC0120-0600-ALU 12,0 12 118 71 60,0  SPC0130-0650-ALU 13,0 14 124 77 65,0  SPC0140-0700-ALU 14,0 14 124 77 70,0  SPC0150-0750-ALU 15,0 16 133 83 75,0  SPC0160-0800-ALU 16,0 16 133 83 80,0  SPC0170-0850-ALU 17,0 18 143 93 85,0  SPC0180-0900-ALU 18,0 18 143 93 90,0  SPC0190-0950-ALU 19,0 20 153 101 95,0  SPC0200-1000-ALU 20,0 20 153 101 100,0    Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 415
