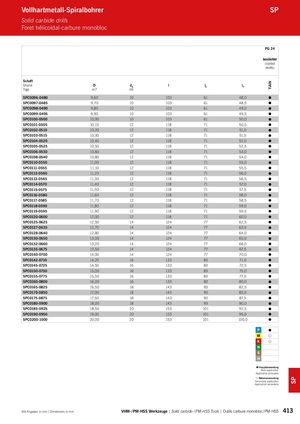

Каталог ARNO монолитный осевой инструмент - страница 413

TiAlN SP Vollhartmetall-Spiralbohrer SP Solid carbide drills Foret hélicoïdal-carbure monobloc PG 24 beschichtet coated revêtu Schaft Shank D dA l l2 l4 Tige m7 h6 SPC0096-0480 9,60 10 103 61 48,0  SPC0097-0485 9,70 10 103 61 48,5  SPC0098-0490 9,80 10 103 61 49,0  SPC0099-0495 9,90 10 103 61 49,5  SPC0100-0500 10,00 10 103 61 50,0  SPC0101-0505 10,10 12 118 71 50,5  SPC0102-0510 10,20 12 118 71 51,0  SPC0103-0515 10,30 12 118 71 51,5  SPC0104-0520 10,40 12 118 71 52,0  SPC0105-0525 10,50 12 118 71 52,5  SPC0106-0530 10,60 12 118 71 53,0  SPC0108-0540 10,80 12 118 71 54,0  SPC0110-0550 11,00 12 118 71 55,0  SPC0111-0555 11,10 12 118 71 55,5  SPC0112-0560 11,20 12 118 71 56,0  SPC0113-0565 11,30 12 118 71 56,5  SPC0114-0570 11,40 12 118 71 57,0  SPC0115-0575 11,50 12 118 71 57,5  SPC0116-0580 11,60 12 118 71 58,0  SPC0117-0585 11,70 12 118 71 58,5  SPC0118-0590 11,80 12 118 71 59,0  SPC0119-0595 11,90 12 118 71 59,5  SPC0120-0600 12,00 12 118 71 60,0  SPC0125-0625 12,50 14 124 77 62,5  SPC0127-0635 12,70 14 124 77 63,5  SPC0128-0640 12,80 14 124 77 64,0  SPC0130-0650 13,00 14 124 77 65,0  SPC0132-0660 13,20 14 124 77 66,0  SPC0135-0675 13,50 14 124 77 67,5  SPC0140-0700 14,00 14 124 77 70,0  SPC0142-0710 14,20 16 133 83 71,0  SPC0145-0725 14,50 16 133 83 72,5  SPC0150-0750 15,00 16 133 83 75,0  SPC0155-0775 15,50 16 133 83 77,5  SPC0160-0800 16,00 16 133 83 80,0  SPC0165-0825 16,50 18 143 93 82,5  SPC0170-0850 17,00 18 143 93 85,0  SPC0175-0875 17,50 18 143 93 87,5  SPC0180-0900 18,00 18 143 93 90,0  SPC0185-0925 18,50 20 153 101 92,5  SPC0190-0950 19,00 20 153 101 95,0  SPC0200-1000 20,00 20 153 101 100,0      Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 413
