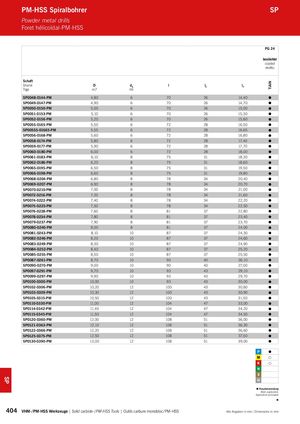

Каталог ARNO монолитный осевой инструмент - страница 404

TiAlN PM-HSS Spiralbohrer SP Powder metal drills Foret hélicoïdal-PM-HSS PG 24 beschichtet coated revêtu Schaft Shank D dA l l2 l4 Tige m7 h6 SP0048-0144-PM 4,80 6 70 26 14,40  SP0049-0147-PM 4,90 6 70 26 14,70  SP0050-0150-PM 5,00 6 70 26 15,00  SP0051-0153-PM 5,10 6 70 26 15,30  SP0052-0156-PM 5,20 6 70 26 15,60  SP0055-0165-PM 5,50 6 72 28 16,50  SP00555-01665-PM 5,55 6 72 28 16,65  SP0056-0168-PM 5,60 6 72 28 16,80  SP0058-0174-PM 5,80 6 72 28 17,40  SP0059-0177-PM 5,90 6 72 28 17,70  SP0060-0180-PM 6,00 6 72 28 18,00  SP0061-0183-PM 6,10 8 75 31 18,30  SP0062-0186-PM 6,20 8 75 31 18,60  SP0065-0195-PM 6,50 8 75 31 19,50  SP0066-0198-PM 6,60 8 75 31 19,80  SP0068-0204-PM 6,80 8 78 34 20,40  SP0069-0207-PM 6,90 8 78 34 20,70  SP0070-0210-PM 7,00 8 78 34 21,00  SP0072-0216-PM 7,20 8 78 34 21,60  SP0074-0222-PM 7,40 8 78 34 22,20  SP0075-0225-PM 7,50 8 78 34 22,50  SP0076-0228-PM 7,60 8 81 37 22,80  SP0078-0234-PM 7,80 8 81 37 23,40  SP0079-0237-PM 7,90 8 81 37 23,70  SP0080-0240-PM 8,00 8 81 37 24,00  SP0081-0243-PM 8,10 10 87 37 24,30  SP0082-0246-PM 8,20 10 87 37 24,60  SP0083-0249-PM 8,30 10 87 37 24,90  SP0084-0252-PM 8,40 10 87 37 25,20  SP0085-0255-PM 8,50 10 87 37 25,50  SP0087-0261-PM 8,70 10 90 40 26,10  SP0090-0270-PM 9,00 10 90 40 27,00  SP0097-0291-PM 9,70 10 93 43 29,10  SP0099-0297-PM 9,90 10 93 43 29,70  SP0100-0300-PM 10,00 10 93 43 30,00  SP0102-0306-PM 10,20 12 100 43 30,60  SP0103-0309-PM 10,30 12 100 43 30,90  SP0105-0315-PM 10,50 12 100 43 31,50  SP0110-0330-PM 11,00 12 104 47 33,00  SP0114-0342-PM 11,40 12 104 47 34,20  SP0115-0345-PM 11,50 12 104 47 34,50  SP0120-0360-PM 12,00 12 108 51 36,00  SP0121-0363-PM 12,10 12 108 51 36,30  SP0122-0366-PM 12,20 12 108 51 36,60  SP0125-0375-PM 12,50 12 108 51 37,50  SP0130-0390-PM 13,00 12 108 51 39,00      Hauptanwendung Main application Application principale v 404 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm SP
