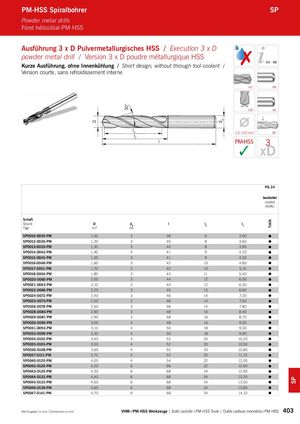

D 30° dA TiAlN SP l PM-HSS Spiralbohrer SP Powder metal drills Foret hélicoïdal-PM-HSS Ausführung 3 x D Pulvermetallurgisches HSS / Execution 3 x D powder metal drill / Version 3 x D poudre métallurgique HSS ✗ 450 – 488 Kurze Ausführung, ohne Innenkühlung / Short design, without through tool coolant / Version courte, sans refroidissement interne m7 HA 135° h6 l4 1,0-13,0 mm 30° l2 PM-HSS 3 ✓ xD PG 24 beschichtet coated revêtu Schaft Shank D dA l l2 l4 Tige m7 h6 SP0010-0030-PM 1,00 3 38 6 3,00  SP0012-0036-PM 1,20 3 40 8 3,60  SP0013-0039-PM 1,30 3 40 8 3,90  SP0014-0042-PM 1,40 3 41 9 4,20  SP0015-0045-PM 1,50 3 41 9 4,50  SP0016-0048-PM 1,60 3 42 10 4,80  SP0017-0051-PM 1,70 3 42 10 5,10  SP0018-0054-PM 1,80 3 43 11 5,40  SP0020-0060-PM 2,00 3 44 12 6,00  SP0021-0063-PM 2,10 3 44 12 6,30  SP0022-0066-PM 2,20 3 45 13 6,60  SP0024-0072-PM 2,40 3 46 14 7,20  SP0025-0075-PM 2,50 3 46 14 7,50  SP0026-0078-PM 2,60 3 46 14 7,80  SP0028-0084-PM 2,80 3 48 16 8,40  SP0029-0087-PM 2,90 3 48 16 8,70  SP0030-0090-PM 3,00 3 48 16 9,00  SP0031-0093-PM 3,10 4 50 18 9,30  SP0033-0099-PM 3,30 4 50 18 9,90  SP0034-0102-PM 3,40 4 52 20 10,20  SP0035-0105-PM 3,50 4 52 20 10,50  SP0036-0108-PM 3,60 4 52 20 10,80  SP0037-0111-PM 3,70 4 52 20 11,10  SP0040-0120-PM 4,00 4 54 22 12,00  SP0042-0126-PM 4,20 6 66 22 12,60  SP0043-0129-PM 4,30 6 68 24 12,90  SP0044-0132-PM 4,40 6 68 24 13,20  SP0045-0135-PM 4,50 6 68 24 13,50  SP0046-0138-PM 4,60 6 68 24 13,80  SP0047-0141-PM 4,70 6 68 24 14,10  Alle Angaben in mm / Dimensions in mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 403
