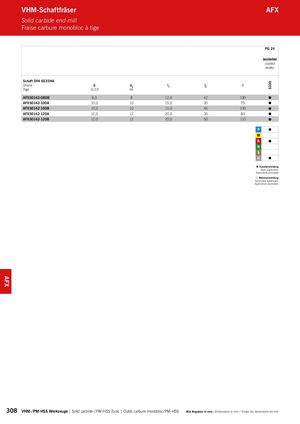

Каталог ARNO монолитный осевой инструмент - страница 308

S100 VHM-Schaftfräser AFX Solid carbide end-mill Fraise carbure monobloc à tige PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l2 l Tige -0,03 h6 AFX50142-080B 8,0 8 12,0 42 100  AFX50142-100A 10,0 10 15,0 30 75  AFX50142-100B 10,0 10 15,0 45 100  AFX50142-120A 12,0 12 20,0 35 80  AFX50142-120B 12,0 12 20,0 50 110      Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 308 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm AFX
