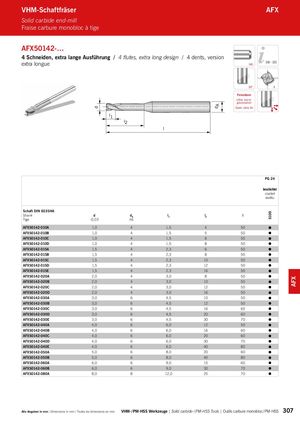

Каталог ARNO монолитный осевой инструмент - страница 307

d dA S100 AFX l VHM-Schaftfräser AFX Solid carbide end-mill Fraise carbure monobloc à tige AFX50142-… 4 Schneiden, extra lange Ausführung / 4 flutes, extra long design / 4 dents, version extra longue HA 310 – 325 30° 4 Feinstkorn Ultra micro granulation Grain ultra fin l1 l2 PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l2 l Tige -0,03 h6 AFX50142-010A 1,0 4 1,5 4 50  AFX50142-010B 1,0 4 1,5 5 50  AFX50142-010C 1,0 4 1,5 6 50  AFX50142-010D 1,0 4 1,5 8 50  AFX50142-015A 1,5 4 2,3 6 50  AFX50142-015B 1,5 4 2,3 8 50  AFX50142-015C 1,5 4 2,3 10 50  AFX50142-015D 1,5 4 2,3 12 50  AFX50142-015E 1,5 4 2,3 16 50  AFX50142-020A 2,0 4 3,0 8 50  AFX50142-020B 2,0 4 3,0 10 50  AFX50142-020C 2,0 4 3,0 12 50  AFX50142-020D 2,0 4 3,0 16 50  AFX50142-030A 3,0 6 4,5 10 50  AFX50142-030B 3,0 6 4,5 12 50  AFX50142-030C 3,0 6 4,5 16 60  AFX50142-030D 3,0 6 4,5 20 60  AFX50142-030E 3,0 6 4,5 30 70  AFX50142-040A 4,0 6 6,0 12 50  AFX50142-040B 4,0 6 6,0 16 60  AFX50142-040C 4,0 6 6,0 20 60  AFX50142-040D 4,0 6 6,0 30 70  AFX50142-040E 4,0 6 6,0 40 80  AFX50142-050A 5,0 6 8,0 20 60  AFX50142-050B 5,0 6 8,0 40 80  AFX50142-060A 6,0 6 9,0 15 60  AFX50142-060B 6,0 6 9,0 30 70  AFX50142-080A 8,0 8 12,0 25 70  Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 307
