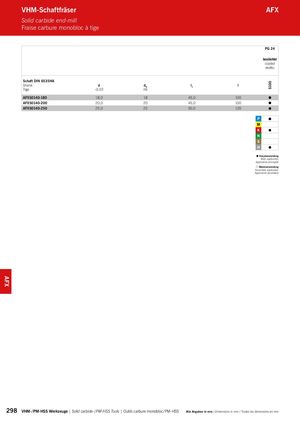

S100 VHM-Schaftfräser AFX Solid carbide end-mill Fraise carbure monobloc à tige PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l Tige -0,03 h6 AFX50140-180 18,0 18 45,0 100  AFX50140-200 20,0 20 45,0 100  AFX50140-250 25,0 25 50,0 120      Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 298 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm AFX
