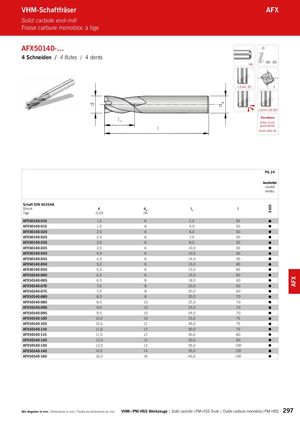

Каталог ARNO монолитный осевой инструмент - страница 297

S100 AFX VHM-Schaftfräser AFX Solid carbide end-mill Fraise carbure monobloc à tige AFX50140-… 4 Schneiden / 4 flutes / 4 dents HA 310 – 325 <3mm 30° 4 ≥3mm 26-30° Feinstkorn Ultra micro granulation Grain ultra fin PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l Tige -0,03 h6 AFX50140-010 1,0 6 2,5 50  AFX50140-015 1,5 6 4,0 50  AFX50140-020 2,0 6 6,0 50  AFX50140-025 2,5 6 7,0 50  AFX50140-030 3,0 6 8,0 50  AFX50140-035 3,5 6 10,0 50  AFX50140-040 4,0 6 10,0 50  AFX50140-045 4,5 6 14,0 50  AFX50140-050 5,0 6 15,0 60  AFX50140-055 5,5 6 15,0 60  AFX50140-060 6,0 6 15,0 60  AFX50140-065 6,5 8 18,0 60  AFX50140-070 7,0 8 20,0 60  AFX50140-075 7,5 8 20,0 60  AFX50140-080 8,0 8 20,0 70  AFX50140-085 8,5 10 22,0 70  AFX50140-090 9,0 10 22,0 70  AFX50140-095 9,5 10 24,0 70  AFX50140-100 10,0 10 25,0 75  AFX50140-105 10,5 12 26,0 75  AFX50140-110 11,0 12 30,0 75  AFX50140-115 11,5 12 30,0 80  AFX50140-120 12,0 12 30,0 80  AFX50140-130 13,0 12 35,0 100  AFX50140-140 14,0 14 35,0 100  AFX50140-160 16,0 16 40,0 100  Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 297
