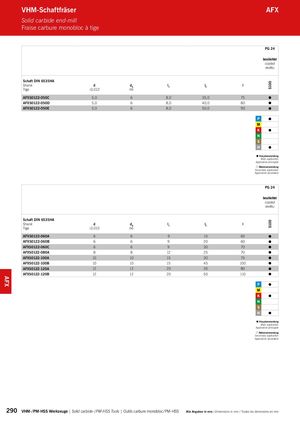

Каталог ARNO монолитный осевой инструмент - страница 290

S100S100 VHM-Schaftfräser AFX Solid carbide end-mill Fraise carbure monobloc à tige PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l2 l Tige -0,012 h6 AFX50122-050C 5,0 6 8,0 35,0 75  AFX50122-050D 5,0 6 8,0 40,0 80  AFX50122-050E 5,0 6 8,0 50,0 90      Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l2 l Tige -0,015 h6 AFX50122-060A 6 6 9 15 60  AFX50122-060B 6 6 9 20 60  AFX50122-060C 6 6 9 30 70  AFX50122-080A 8 8 12 25 70  AFX50122-100A 10 10 15 30 75  AFX50122-100B 10 10 15 45 100  AFX50122-120A 12 12 20 35 80  AFX50122-120B 12 12 20 50 110      Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 290 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm AFX
