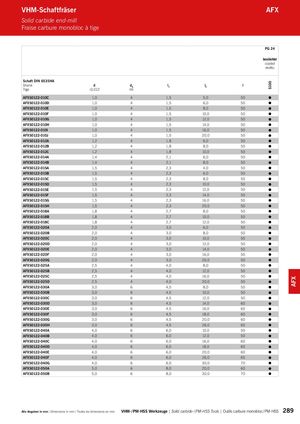

Каталог ARNO монолитный осевой инструмент - страница 289

S100 AFX VHM-Schaftfräser AFX Solid carbide end-mill Fraise carbure monobloc à tige PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l2 l Tige -0,012 h6 AFX50122-010C 1,0 4 1,5 5,0 50  AFX50122-010D 1,0 4 1,5 6,0 50  AFX50122-010E 1,0 4 1,5 8,0 50  AFX50122-010F 1,0 4 1,5 10,0 50  AFX50122-010G 1,0 4 1,5 12,0 50  AFX50122-010H 1,0 4 1,5 14,0 50  AFX50122-010I 1,0 4 1,5 16,0 50  AFX50122-010J 1,0 4 1,5 20,0 50  AFX50122-012A 1,2 4 1,8 6,0 50  AFX50122-012B 1,2 4 1,8 8,0 50  AFX50122-012C 1,2 4 1,8 10,0 50  AFX50122-014A 1,4 4 2,1 6,0 50  AFX50122-014B 1,4 4 2,1 8,0 50  AFX50122-015A 1,5 4 2,3 4,0 50  AFX50122-015B 1,5 4 2,3 6,0 50  AFX50122-015C 1,5 4 2,3 8,0 50  AFX50122-015D 1,5 4 2,3 10,0 50  AFX50122-015E 1,5 4 2,3 12,0 50  AFX50122-015F 1,5 4 2,3 14,0 50  AFX50122-015G 1,5 4 2,3 16,0 50  AFX50122-015H 1,5 4 2,3 20,0 50  AFX50122-018A 1,8 4 2,7 8,0 50  AFX50122-018B 1,8 4 2,7 10,0 50  AFX50122-018C 1,8 4 2,7 12,0 50  AFX50122-020A 2,0 4 3,0 6,0 50  AFX50122-020B 2,0 4 3,0 8,0 50  AFX50122-020C 2,0 4 3,0 10,0 50  AFX50122-020D 2,0 4 3,0 12,0 50  AFX50122-020E 2,0 4 3,0 14,0 50  AFX50122-020F 2,0 4 3,0 16,0 50  AFX50122-020G 2,0 4 3,0 20,0 50  AFX50122-025A 2,5 4 4,0 8,0 50  AFX50122-025B 2,5 4 4,0 12,0 50  AFX50122-025C 2,5 4 4,0 16,0 50  AFX50122-025D 2,5 4 4,0 20,0 50  AFX50122-030A 3,0 6 4,5 8,0 50  AFX50122-030B 3,0 6 4,5 10,0 50  AFX50122-030C 3,0 6 4,5 12,0 50  AFX50122-030D 3,0 6 4,5 14,0 60  AFX50122-030E 3,0 6 4,5 16,0 60  AFX50122-030F 3,0 6 4,5 18,0 60  AFX50122-030G 3,0 6 4,5 20,0 60  AFX50122-030H 3,0 6 4,5 26,0 65  AFX50122-040A 4,0 6 6,0 10,0 50  AFX50122-040B 4,0 6 6,0 12,0 50  AFX50122-040C 4,0 6 6,0 16,0 60  AFX50122-040D 4,0 6 6,0 18,0 60  AFX50122-040E 4,0 6 6,0 20,0 60  AFX50122-040F 4,0 6 6,0 26,0 65  AFX50122-040G 4,0 6 6,0 30,0 70  AFX50122-050A 5,0 6 8,0 20,0 60  AFX50122-050B 5,0 6 8,0 30,0 70  Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 289
