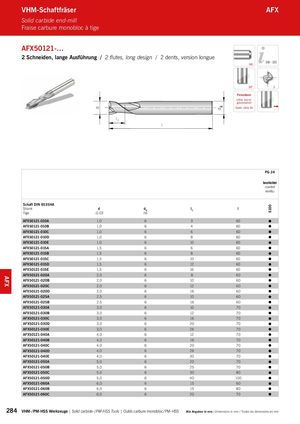

Каталог ARNO монолитный осевой инструмент - страница 284

S100 VHM-Schaftfräser AFX Solid carbide end-mill Fraise carbure monobloc à tige AFX50121-… 2 Schneiden, lange Ausführung / 2 flutes, long design / 2 dents, version longue HA 310 – 325 30° 2 Feinstkorn Ultra micro granulation Grain ultra fin PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l Tige -0,03 h6 AFX50121-010A 1,0 6 3 60  AFX50121-010B 1,0 6 4 60  AFX50121-010C 1,0 6 6 60  AFX50121-010D 1,0 6 8 60  AFX50121-010E 1,0 6 10 60  AFX50121-015A 1,5 6 6 60  AFX50121-015B 1,5 6 8 60  AFX50121-015C 1,5 6 10 60  AFX50121-015D 1,5 6 12 60  AFX50121-015E 1,5 6 16 60  AFX50121-020A 2,0 6 8 60  AFX50121-020B 2,0 6 10 60  AFX50121-020C 2,0 6 12 60  AFX50121-020D 2,0 6 16 60  AFX50121-025A 2,5 6 10 60  AFX50121-025B 2,5 6 16 60  AFX50121-030A 3,0 6 10 70  AFX50121-030B 3,0 6 12 70  AFX50121-030C 3,0 6 16 70  AFX50121-030D 3,0 6 20 70  AFX50121-030E 3,0 6 26 70  AFX50121-040A 4,0 6 12 70  AFX50121-040B 4,0 6 16 70  AFX50121-040C 4,0 6 20 70  AFX50121-040D 4,0 6 26 70  AFX50121-040E 4,0 6 30 70  AFX50121-050A 5,0 6 20 70  AFX50121-050B 5,0 6 25 70  AFX50121-050C 5,0 6 30 80  AFX50121-050D 5,0 6 40 100  AFX50121-060A 6,0 6 15 60  AFX50121-060B 6,0 6 15 80  AFX50121-060C 6,0 6 20 70  284 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm AFX
