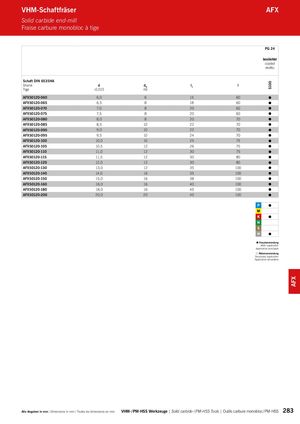

S100 AFX VHM-Schaftfräser AFX Solid carbide end-mill Fraise carbure monobloc à tige PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l Tige -0,015 h6 AFX50120-060 6,0 6 15 60  AFX50120-065 6,5 8 18 60  AFX50120-070 7,0 8 20 60  AFX50120-075 7,5 8 20 60  AFX50120-080 8,0 8 20 70  AFX50120-085 8,5 10 22 70  AFX50120-090 9,0 10 22 70  AFX50120-095 9,5 10 24 70  AFX50120-100 10,0 10 25 75  AFX50120-105 10,5 12 26 75  AFX50120-110 11,0 12 30 75  AFX50120-115 11,5 12 30 80  AFX50120-120 12,0 12 30 80  AFX50120-130 13,0 12 35 100  AFX50120-140 14,0 16 35 100  AFX50120-150 15,0 16 38 100  AFX50120-160 16,0 16 40 100  AFX50120-180 18,0 16 45 100  AFX50120-200 20,0 20 45 100      Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 283
