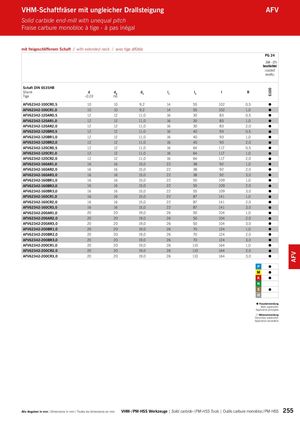

mit freigeschliffenem Schaft / with extended neck / avec tige affûtée
| PG 24 beschichtet coated revêtu 268 – 275 | ||||||||
| Schaft DIN 6535HB Shank Tige | d -0,03 | dA h6 | d3 | l1 | l2 | l | R | S100 |
| AFV62342-100CR0,5 | 10 | 10 | 9,2 | 14 | 55 | 102 | 0,5 | |
| AFV62342-100CR1,0 | 10 | 10 | 9,2 | 14 | 55 | 102 | 1,0 | |
| AFV62342-120AR0,5 | 12 | 12 | 11,0 | 16 | 30 | 83 | 0,5 | |
| AFV62342-120AR1,0 | 12 | 12 | 11,0 | 16 | 30 | 83 | 1,0 | |
| AFV62342-120AR2,0 | 12 | 12 | 11,0 | 16 | 30 | 83 | 2,0 | |
| AFV62342-120BR0,5 | 12 | 12 | 11,0 | 16 | 40 | 93 | 0,5 | |
| AFV62342-120BR1,0 | 12 | 12 | 11,0 | 16 | 40 | 93 | 1,0 | |
| AFV62342-120BR2,0 | 12 | 12 | 11,0 | 16 | 40 | 93 | 2,0 | |
| AFV62342-120CR0,5 | 12 | 12 | 11,0 | 16 | 64 | 117 | 0,5 | |
| AFV62342-120CR1,0 | 12 | 12 | 11,0 | 16 | 64 | 117 | 1,0 | |
| AFV62342-120CR2,0 | 12 | 12 | 11,0 | 16 | 64 | 117 | 2,0 | |
| AFV62342-160AR1,0 | 16 | 16 | 15,0 | 22 | 38 | 92 | 1,0 | |
| AFV62342-160AR2,0 | 16 | 16 | 15,0 | 22 | 38 | 92 | 2,0 | |
| AFV62342-160AR3,0 | 16 | 16 | 15,0 | 22 | 38 | 92 | 3,0 | |
| AFV62342-160BR1,0 | 16 | 16 | 15,0 | 22 | 55 | 109 | 1,0 | |
| AFV62342-160BR2,0 | 16 | 16 | 15,0 | 22 | 55 | 109 | 2,0 | |
| AFV62342-160BR3,0 | 16 | 16 | 15,0 | 22 | 55 | 109 | 3,0 | |
| AFV62342-160CR1,0 | 16 | 16 | 15,0 | 22 | 87 | 141 | 1,0 | |
| AFV62342-160CR2,0 | 16 | 16 | 15,0 | 22 | 87 | 141 | 2,0 | |
| AFV62342-160CR3,0 | 16 | 16 | 15,0 | 22 | 87 | 141 | 3,0 | |
| AFV62342-200AR1,0 | 20 | 20 | 19,0 | 26 | 50 | 104 | 1,0 | |
| AFV62342-200AR2,0 | 20 | 20 | 19,0 | 26 | 50 | 104 | 2,0 | |
| AFV62342-200AR3,0 | 20 | 20 | 19,0 | 26 | 50 | 104 | 3,0 | |
| AFV62342-200BR1,0 | 20 | 20 | 19,0 | 26 | 70 | 124 | 1,0 | |
| AFV62342-200BR2,0 | 20 | 20 | 19,0 | 26 | 70 | 124 | 2,0 | |
| AFV62342-200BR3,0 | 20 | 20 | 19,0 | 26 | 70 | 124 | 3,0 | |
| AFV62342-200CR1,0 | 20 | 20 | 19,0 | 26 | 110 | 164 | 1,0 | |
| AFV62342-200CR2,0 | 20 | 20 | 19,0 | 26 | 110 | 164 | 2,0 | |
| AFV62342-200CR3,0 | 20 | 20 | 19,0 | 26 | 110 | 164 | 3,0 | |
| |
Hauptanwendung Main application Application principale Nebenanwendung Secondary application Application secondaire
