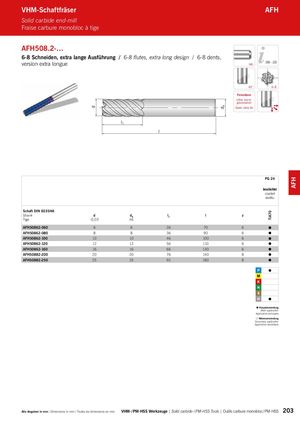

AFH508.2-…

6-8 Schneiden, extra lange Ausführung / 6-8 flutes, extra long design / 6-8 dents, version extra longue 206 – 223 HA

45° 6-8 Feinstkorn Ultra micro granulation Grain ultra fin

					PG 24 beschichtet coated revêtu
Schaft DIN 6535HA					0
Shank Tige	d -0,03	dA h6	l1	l	z TiA7
AFH50862-060	6	6	26	70	6 
AFH50862-080	8	8	36	90	6 
AFH50862-100	10	10	46	100	6 
AFH50862-120	12	12	56	110	6 
AFH50862-160	16	16	66	130	6 
AFH50882-200	20	20	76	140	8 
AFH50882-250	25	25	92	180	8 
					
					
					Hauptanwendung Main application Application principale
					Nebenanwendung Secondary application Application secondaire
