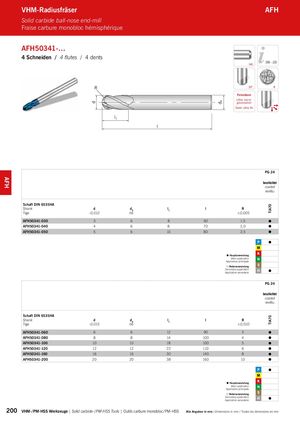

d dA TiA70TiA70 l AFH VHM-Radiusfräser AFH Solid carbide ball-nose end-mill Fraise carbure monobloc hémisphérique AFH50341-… 4 Schneiden / 4 flutes / 4 dents HA 206 – 223 R 30° 4 Feinstkorn Ultra micro granulation Grain ultra fin l1 PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l R Tige -0,012 h6 ±0,005 AFH50341-030 3 6 8 60 1,5  AFH50341-040 4 6 8 70 2,0  AFH50341-050 5 6 10 80 2,5    Hauptanwendung Main application Application principale  Nebenanwendung Secondary applicationApplication secondaire PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l R Tige -0,015 h6 ±0,010 AFH50341-060 6 6 12 90 3  AFH50341-080 8 8 14 100 4  AFH50341-100 10 10 18 100 5  AFH50341-120 12 12 22 110 6  AFH50341-160 16 16 30 140 8  AFH50341-200 20 20 38 160 10    Hauptanwendung Main application Application principale  Nebenanwendung Secondary applicationApplication secondaire 200 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm
