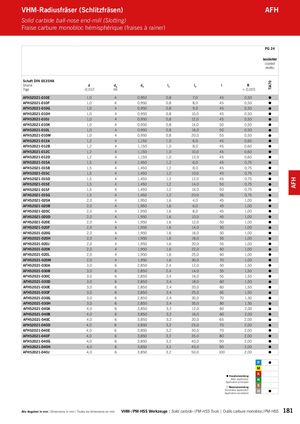

PG 24 beschichtet coated revêtu Schaft DIN 6535HA
| Shank | d | d | d l | l | l | R | ||
| Tige | -0,012 | h6A | 3 1 | 2 | ± 0,005 | |||
| AFH52021-010E | 1,0 | 4 | 0,950 | 0,8 | 7,0 | 45 | 0,50 | |
| AFH52021-010F | 1,0 | 4 | 0,950 | 0,8 | 8,0 | 45 | 0,50 | |
| AFH52021-010G | 1,0 | 4 | 0,950 | 0,8 | 9,0 | 45 | 0,50 | |
| AFH52021-010H | 1,0 | 4 | 0,950 | 0,8 | 10,0 | 45 | 0,50 | |
| AFH52021-010J | 1,0 | 4 | 0,950 | 0,8 | 12,0 | 45 | 0,50 | |
| AFH52021-010K | 1,0 | 4 | 0,950 | 0,8 | 14,0 | 50 | 0,50 | |
| AFH52021-010L | 1,0 | 4 | 0,950 | 0,8 | 16,0 | 50 | 0,50 | |
| AFH52021-010M | 1,0 | 4 | 0,950 | 0,8 | 20,0 | 55 | 0,50 | |
| AFH52021-012A | 1,2 | 4 | 1,150 | 1,0 | 6,0 | 45 | 0,60 | |
| AFH52021-012B | 1,2 | 4 | 1,150 | 1,0 | 8,0 | 45 | 0,60 | |
| AFH52021-012C | 1,2 | 4 | 1,150 | 1,0 | 10,0 | 45 | 0,60 | |
| AFH52021-012D | 1,2 | 4 | 1,150 | 1,0 | 12,0 | 45 | 0,60 | |
| AFH52021-015A | 1,5 | 4 | 1,450 | 1,2 | 6,0 | 45 | 0,75 | |
| AFH52021-015B | 1,5 | 4 | 1,450 | 1,2 | 8,0 | 45 | 0,75 | |
| AFH52021-015C | 1,5 | 4 | 1,450 | 1,2 | 10,0 | 45 | 0,75 | |
| AFH52021-015D | 1,5 | 4 | 1,450 | 1,2 | 12,0 | 45 | 0,75 | |
| AFH52021-015E | 1,5 | 4 | 1,450 | 1,2 | 14,0 | 50 | 0,75 | |
| AFH52021-015F | 1,5 | 4 | 1,450 | 1,2 | 16,0 | 50 | 0,75 | |
| AFH52021-015G | 1,5 | 4 | 1,450 | 1,2 | 20,0 | 55 | 0,75 | |
| AFH52021-020A | 2,0 | 4 | 1,950 | 1,6 | 4,0 | 45 | 1,00 | |
| AFH52021-020B | 2,0 | 4 | 1,950 | 1,6 | 6,0 | 45 | 1,00 | |
| AFH52021-020C | 2,0 | 4 | 1,950 | 1,6 | 8,0 | 45 | 1,00 | |
| AFH52021-020D | 2,0 | 4 | 1,950 | 1,6 | 10,0 | 45 | 1,00 | |
| AFH52021-020E | 2,0 | 4 | 1,950 | 1,6 | 12,0 | 50 | 1,00 | |
| AFH52021-020F | 2,0 | 4 | 1,950 | 1,6 | 14,0 | 50 | 1,00 | |
| AFH52021-020G | 2,0 | 4 | 1,950 | 1,6 | 16,0 | 50 | 1,00 | |
| AFH52021-020H | 2,0 | 4 | 1,950 | 1,6 | 18,0 | 55 | 1,00 | |
| AFH52021-020J | 2,0 | 4 | 1,950 | 1,6 | 20,0 | 55 | 1,00 | |
| AFH52021-020K | 2,0 | 4 | 1,950 | 1,6 | 22,0 | 60 | 1,00 | |
| AFH52021-020L | 2,0 | 4 | 1,950 | 1,6 | 25,0 | 60 | 1,00 | |
| AFH52021-020M | 2,0 | 4 | 1,950 | 1,6 | 30,0 | 70 | 1,00 | |
| AFH52021-030A | 3,0 | 6 | 2,850 | 2,4 | 12,0 | 50 | 1,50 | |
| AFH52021-030B | 3,0 | 6 | 2,850 | 2,4 | 14,0 | 55 | 1,50 | |
| AFH52021-030C | 3,0 | 6 | 2,850 | 2,4 | 16,0 | 55 | 1,50 | |
| AFH52021-030D | 3,0 | 6 | 2,850 | 2,4 | 18,0 | 60 | 1,50 | |
| AFH52021-030E | 3,0 | 6 | 2,850 | 2,4 | 20,0 | 60 | 1,50 | |
| AFH52021-030F | 3,0 | 6 | 2,850 | 2,4 | 25,0 | 65 | 1,50 | |
| AFH52021-030G | 3,0 | 6 | 2,850 | 2,4 | 30,0 | 70 | 1,50 | |
| AFH52021-030H | 3,0 | 6 | 2,850 | 2,4 | 35,0 | 80 | 1,50 | |
| AFH52021-040A | 4,0 | 6 | 3,850 | 3,2 | 12,0 | 60 | 2,00 | |
| AFH52021-040B | 4,0 | 6 | 3,850 | 3,2 | 16,0 | 60 | 2,00 | |
| AFH52021-040C | 4,0 | 6 | 3,850 | 3,2 | 20,0 | 65 | 2,00 | |
| AFH52021-040D | 4,0 | 6 | 3,850 | 3,2 | 25,0 | 70 | 2,00 | |
| AFH52021-040E | 4,0 | 6 | 3,850 | 3,2 | 30,0 | 70 | 2,00 | |
| AFH52021-040F | 4,0 | 6 | 3,850 | 3,2 | 35,0 | 80 | 2,00 | |
| AFH52021-040G | 4,0 | 6 | 3,850 | 3,2 | 40,0 | 90 | 2,00 | |
| AFH52021-040H | 4,0 | 6 | 3,850 | 3,2 | 45,0 | 90 | 2,00 | |
| AFH52021-040J | 4,0 | 6 | 3,850 | 3,2 | 50,0 | 100 | 2,00 | |
Hauptanwendung Main application Application principale
