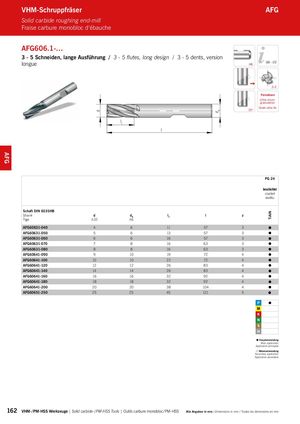

Каталог ARNO монолитный осевой инструмент - страница 162

d dA TiAlN AFG VHM-Schruppfräser AFG Solid carbide roughing end-mill Fraise carbure monobloc d‘ébauche AFG606.1-… 3 - 5 Schneiden, lange Ausführung / 3 - 5 flutes, long design / 3 - 5 dents, version longue HB 163 – 172 3-5 Feinstkorn Ultra micro granulation 20° Grain ultra fin l1 l PG 24 beschichtet coated revêtu Schaft DIN 6535HB Shank d dA l1 l z Tige h10 h6 AFG60631-040 4 6 11 57 3  AFG60631-050 5 6 13 57 3  AFG60631-060 6 6 16 57 3  AFG60631-070 7 8 16 63 3  AFG60631-080 8 8 16 63 3  AFG60641-090 9 10 19 72 4  AFG60641-100 10 10 22 72 4  AFG60641-120 12 12 26 83 4  AFG60641-140 14 14 26 83 4  AFG60641-160 16 16 32 92 4  AFG60641-180 18 18 32 92 4  AFG60641-200 20 20 38 104 4  AFG60651-250 25 25 45 121 5    Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 162 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm
