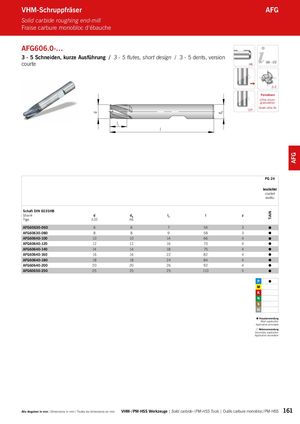

Каталог ARNO монолитный осевой инструмент - страница 161

d dA TiAlN AFG VHM-Schruppfräser AFG Solid carbide roughing end-mill Fraise carbure monobloc d‘ébauche AFG606.0-… 3 - 5 Schneiden, kurze Ausführung / 3 - 5 flutes, short design / 3 - 5 dents, version courte HB 163 – 172 3-5 Feinstkorn Ultra micro granulation 20° Grain ultra fin l1 l PG 24 beschichtet coated revêtu Schaft DIN 6535HB Shank d dA l1 l z Tige h10 h6 AFG60630-060 6 6 7 54 3  AFG60630-080 8 8 9 58 3  AFG60640-100 10 10 14 66 4  AFG60640-120 12 12 16 73 4  AFG60640-140 14 14 18 75 4  AFG60640-160 16 16 22 82 4  AFG60640-180 18 18 24 84 4  AFG60640-200 20 20 26 92 4  AFG60650-250 25 25 25 110 5    Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 161
