Каталог ARNO монолитный осевой инструмент - страница 151

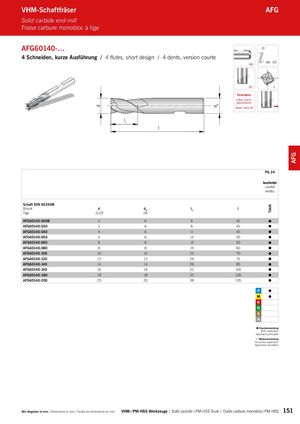

d dA TiAlN AFG VHM-Schaftfräser AFG Solid carbide end-mill Fraise carbure monobloc à tige AFG60140-… 4 Schneiden, kurze Ausführung / 4 flutes, short design / 4 dents, version courte HB 163 – 172 30° 4 Feinstkorn Ultra micro granulation Grain ultra fin l1 l PG 24 beschichtet coated revêtu Schaft DIN 6535HB Shank d dA l1 l Tige -0,03 h6 AFG60140-020B 2 6 6 40  AFG60140-030 3 6 8 45  AFG60140-040 4 6 11 45  AFG60140-050 5 6 13 50  AFG60140-060 6 6 13 50  AFG60140-080 8 8 19 60  AFG60140-100 10 10 22 70  AFG60140-120 12 12 26 75  AFG60140-140 14 14 26 85  AFG60140-160 16 16 32 100  AFG60140-180 18 18 32 100  AFG60140-200 20 20 38 105     Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 151
