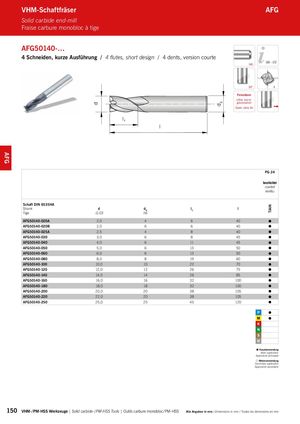

Каталог ARNO монолитный осевой инструмент - страница 150

AFG TiAlN VHM-Schaftfräser AFG Solid carbide end-mill Fraise carbure monobloc à tige AFG50140-… 4 Schneiden, kurze Ausführung / 4 flutes, short design / 4 dents, version courte HA 163 – 172 30° 4 Feinstkorn Ultra micro granulation Grain ultra fin PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l Tige -0,03 h6 AFG50140-020A 2,0 4 6 40  AFG50140-020B 2,0 6 6 40  AFG50140-025A 2,5 4 8 40  AFG50140-030 3,0 6 8 45  AFG50140-040 4,0 6 11 45  AFG50140-050 5,0 6 13 50  AFG50140-060 6,0 6 13 50  AFG50140-080 8,0 8 19 60  AFG50140-100 10,0 10 22 70  AFG50140-120 12,0 12 26 75  AFG50140-140 14,0 14 26 85  AFG50140-160 16,0 16 32 100  AFG50140-180 18,0 18 32 100  AFG50140-200 20,0 20 38 105  AFG50140-220 22,0 20 38 105  AFG50140-250 25,0 25 45 120     Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 150 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm
