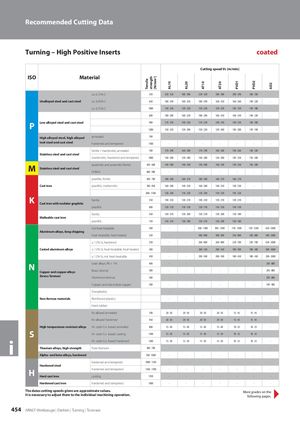

Каталог ARNO инструмент и сменные пластины для токарной обработки и обработки резьбы - страница 454

Tensile strength [N/mm2] AL10 AL20 AT10 AT20 PVD1 PVD2 AD2 Recommended Cutting Data Turning – High Positive Inserts coated Cutting speed Vc [m/min] ISO Material ca. 0,15% C 350 220 - 320 180 - 280 220 - 320 180 - 280 200 - 290 160 - 250 - Unalloyed steel and cast steel ca. 0,45% C 650 180 - 290 160 - 250 180 - 290 160 - 250 160 - 260 140 - 220 - ca. 0,75% C 1000 150 - 250 120 - 220 150 - 250 120 - 220 130 - 230 110 - 180 - 600 180 - 280 160 - 250 180 - 280 160 - 250 160 - 250 140 - 220 - P Low alloyed steel and cast steel 900 170 - 250 140 - 230 170 - 250 140 - 230 150 - 230 130 - 200 -1200150 - 220120 - 200150 - 220120 - 200130 - 200110 - 190- High alloyed steel, high alloyed annealed 700 - - - - - - - tool steel and cast steel hardened and tempered 1100 - - - - - - - ferritic / martensitic, annealed 700 170 - 290 160 - 280 170 - 290 160 - 280 150 - 260 130 - 220 - Stainless steel and cast steel martensitic, hardened and tempered 1000 140 - 280 130 - 280 140 - 280 130 - 280 120 - 250 110 - 200 - M Stainless steel and cast steel austenitic and austenitic/ferriticchilled 450 - 600 140 - 280 140 - 240 140 - 280 140 - 240 120 - 250 120 - 200 -600 - 900------- pearlitic, ferritic 500 - 700 180 - 300 160 - 270 180 - 300 160 - 270 160 - 270 - - Cast iron pearlitic, martensitic 700 - 850 160 - 280 140 - 250 160 - 280 140 - 250 140 - 250 - - 800 - 1100 120 - 240 110 - 220 120 - 240 110 - 220 110 - 220 - - K Cast iron with nodular graphite ferritic 550 140 - 230 130 - 210 140 - 230 130 - 210 120 - 210 - - pearlitic 800 120 - 170 110 - 150 120 - 170 110 - 150 110 - 150 - - ferritic 450 150 - 210 130 - 200 150 - 210 130 - 200 130 - 180 - - Malleable cast iron pearlitic 750 150 - 210 130 - 200 150 - 210 130 - 200 130 - 180 - - not heat treatable 200 - - 850 - 1300 850 - 1300 750 - 1200 750 - 1200 650 - 2000 Aluminum alloys, long chipping heat treatable, heat treated 350 - - 400 - 900 400 - 900 350 - 800 350 - 800 300 - 2000 ≤ 12% Si, hardened 250 - - 260 - 800 260 - 800 230 - 700 230 - 700 650 - 2000 Casted aluminum alloys ≤ 12% Si, heat treatable, heat treated 300 - - 200 - 550 200 - 550 180 - 500 180 - 500 300 - 2000 ≤ 12% Si, not heat treatable 450 - - 200 - 500 200 - 500 180 - 450 180 - 450 200 - 2000 N Copper and copper alloys Lead alloys, Pb > 1%Brass, bronze 400 - - - - - - 250 - 800300------250 - 800 (brass / bronze) Aluminum bronze 500 - - - - - - 250 - 800 Copper and electrolyte copper 200 - - - - - - 130 - 400 Duroplastics - - - - - - - Non-ferrous materials Reinforced plastics - - - - - - - Hard rubber - - - - - - - Fe-alloyed annealed 700 20 - 50 20 - 50 20 - 50 20 - 50 15 - 45 15 - 45 - Fe-alloyed hardened 950 20 - 50 20 - 50 20 - 50 20 - 50 15 - 45 15 - 45 - High temperature resistant alloys Ni- oder Co- based annealed 800 15 - 40 15 - 40 15 - 40 15 - 40 10 - 35 10 - 35 - S Ni- oder Co- based casting 1100 15 - 30 15 - 30 15 - 30 15 - 30 10 - 25 10 - 25 - i Ni- oder Co- based hardened 1200 15 - 30 15 - 30 15 - 30 15 - 30 10 - 25 10 - 25 -Titanium alloys, high strengthPure titanium500 - 700------- Alpha- and beta-alloys, hardened 700 - 1000 - - - - - - - hardened and tempered 1000 - 1350 - - - - - - - Hardened steel H Hard cast iron hardened and tempered 1350 - 1700 - - - - - - -casting1350------- Hardened cast iron hardened and tempered 1900 - - - - - - - The datas cutting speeds given are approximate values. More grades on the It is necessary to adjust them to the individual machining operation. following pages. 454 ARNO®-Werkzeuge | Drehen | Turning | Точение
