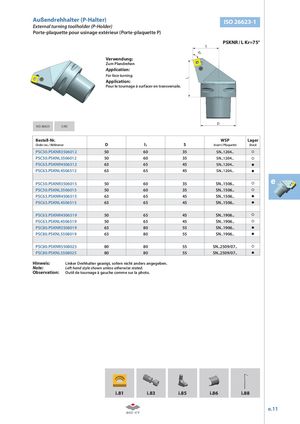

l1 Außendrehhalter (P-Halter) ISO 26623-1 External turning toolholder (P-Holder) Porte-plaquette pour usinage extérieur (Porte-plaquette P) PSKNR / L Kr=75° S Kr Verwendung: Zum Plandrehen Application: For face turning. Application: Pour le tournage á surfacer en transversale. D ISO 26623 CAD Bestell-Nr. WSP Lager Order no. / Référence D l1 S Insert / Plaquette Stock PSC50.PSKNR3506012 50 60 35 SN..1204.. PSC50.PSKNL3506012 50 60 35 SN..1204.. PSC63.PSKNR4506512 63 65 45 SN..1204.. PSC63.PSKNL4506512 63 65 45 SN..1204.. PSC50.PSKNR3506015 50 60 35 SN..1506.. e PSC50.PSKNL3506015 50 60 35 SN..1506.. PSC63.PSKNR4506515 63 65 45 SN..1506.. PSC63.PSKNL4506515 63 65 45 SN..1506.. PSC63.PSKNR4506519 50 65 45 SN..1906.. PSC63.PSKNL4506519 50 65 45 SN..1906.. PSC80.PSKNR5508019 63 80 55 SN..1906.. PSC80.PSKNL5508019 63 80 55 SN..1906.. PSC80.PSKNR5508025 80 80 55 SN..2509/07.. PSC80.PSKNL5508025 80 80 55 SN..2509/07.. Hinweis: Linker Drehhalter gezeigt, sofern nicht anders angegeben. Note: Left hand style shown unless otherwise stated. Observation: Outil de tournage à gauche comme sur la photo. i.81 i.83 i.85 i.86 i.88 e.11
